Front Wheelhouse Panel Brace Replacement (Rear)

Courtesy of GENERAL MOTORS COMPANY

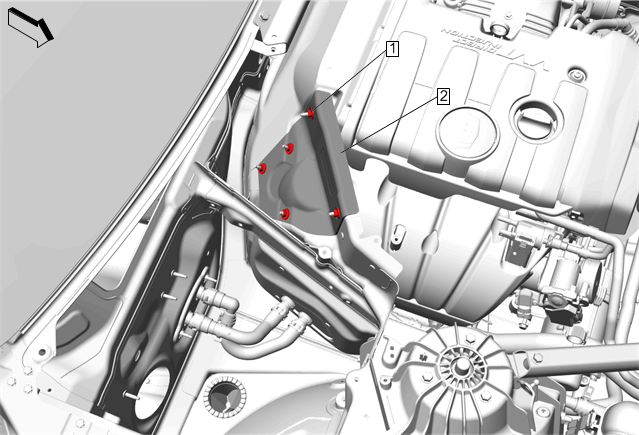

Callout	Component Name
Preliminary Procedure  Front End Sheet Metal Cross Brace Replacement
1	Front Wheelhouse Panel Brace Fastener [5x] CAUTION: Refer to Fastener Caution Tighten  9 N.m (80 lb in)
2	Front Wheelhouse Panel Brace
