Front Wheelhouse Panel Brace Replacement (Front)

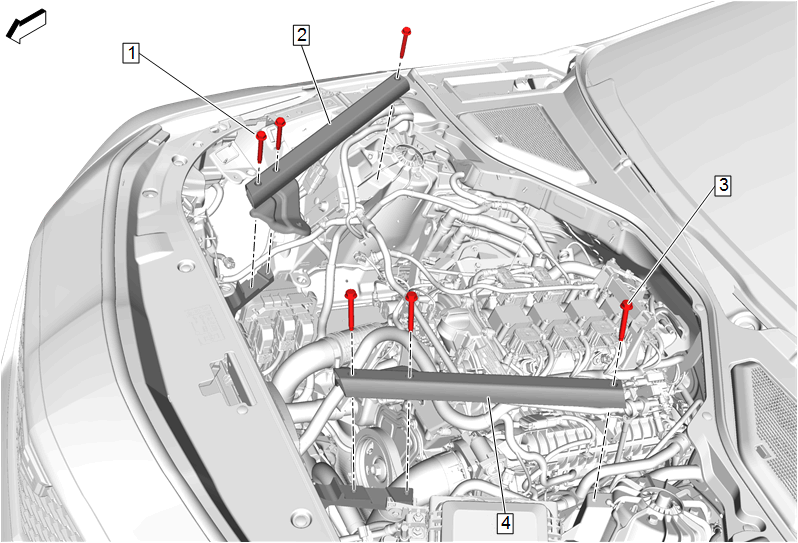

| Callout | Component Name |
|---|---|
| Preliminary Procedure |
|
| 1 | Front Wheelhouse Panel Brace Fastener [3x]
CAUTION:
Refer to Fastener Caution Tighten 22 N.m (16 lb ft) |
| 2 | Front Wheelhouse Panel Brace-Right Side |
| 3 | Front Wheelhouse Panel Brace Fastener [3x] Tighten 22 N.m (16 lb ft) |
| 4 | Front Wheelhouse Panel Brace-Left Side |
