Rear Window Inside Sunshade Replacement

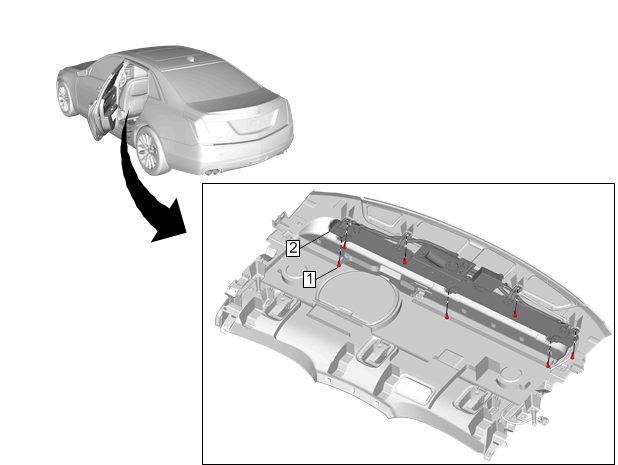

GM4257378

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedure
Rear Window Panel Trim Replacement (Without Platinum) Rear Window Panel Trim Replacement (With Platinum)

1

Rear Window Inside Sunshade Fastener [7x]

CAUTION:

Refer to Fastener Caution .

Tighten
2.5 N.m (22 lb in)

2

Rear Window Inside Sunshade Assembly

Procedure

Disconnect the electrical connector.
Manually extend the shade and slide the shade over to one side while tipping the opposite side down.
Remove carefully through the opening in the rear window panel trim.
