Center Pillar Lower Trim Panel Replacement

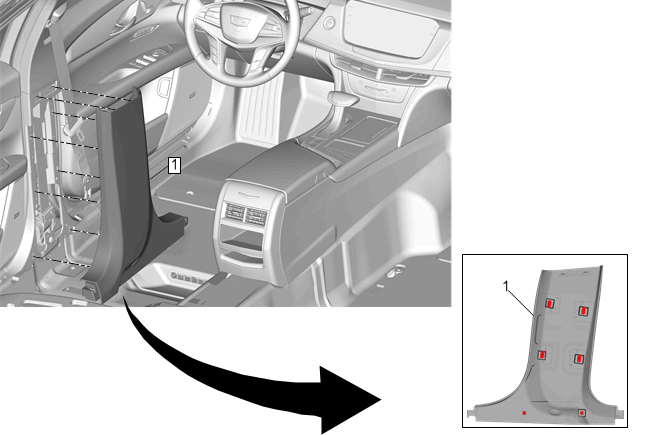

GM4251870Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Front Side Door Sill Garnish Molding Replacement
  2. Body Lock Pillar Garnish Molding Replacement
  3. Move the seat to the full forward position.
1 Center Pillar Lower Trim Panel Assembly

Procedure

  1. Using a flat bladed plastic trim tool, pull the trim panel toward the inside of the vehicle to disengage the retainers.
  2. Ensure the seat belt webbing does not become trapped during installation.
