Home >> Cadillac >> 2020 >> CT6 V >> Repair and Diagnosis >> Body & Frame >> Exterior/Interior Trim >> Interior Trim And Paneling >> Repair Instructions >> Body Lock Pillar Garnish Molding Replacement

Body Lock Pillar Garnish Molding Replacement

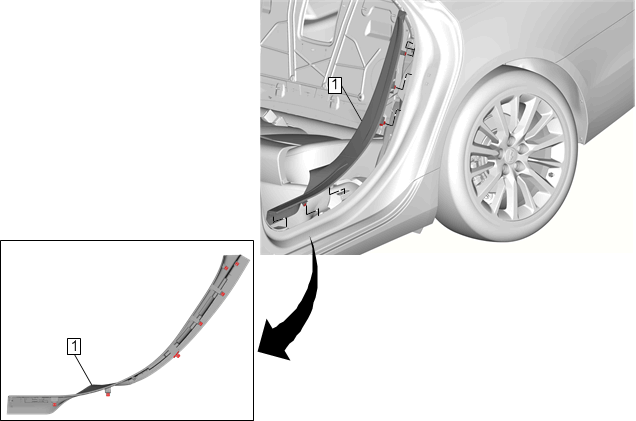

GM4257159Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Body Lock Pillar Garnish Molding

Procedure

  1. Work your way forward disengaging all of the garnish molding clips then pull rearward to disengage.
  2. Disconnect electrical connections, if applicable.
