| 1 |

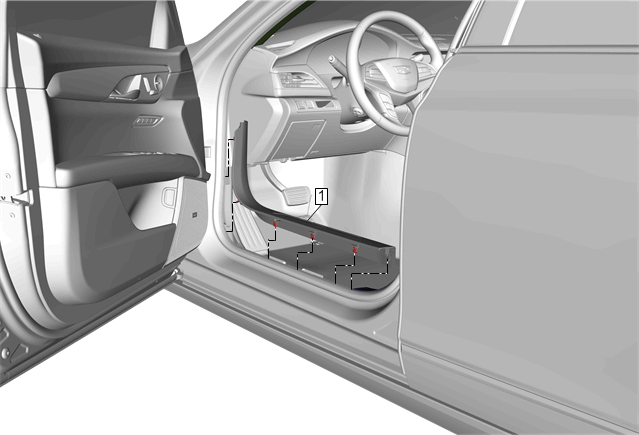

Front Side Door Sill Trim Plate Procedure
- Starting at the rear of the garnish molding, pull upward at the B-Pillar joint to disengage garnish molding.
- Work your way forward disengaging all of the garnish molding clips then pull rearward to disengage the 2 clips on the forward vertical wall.
- Reposition the front floor panel carpet as needed.
- Disconnect electrical connections, if applicable.
|
