Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

With the aid of an assistant, position the instrument carrier in the vehicle (1).
Reposition the instrument panel wiring harness into the vehicle position as was noted in the removal and connect the fasteners securing the instrument panel wiring harness to the instrument carrier.
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

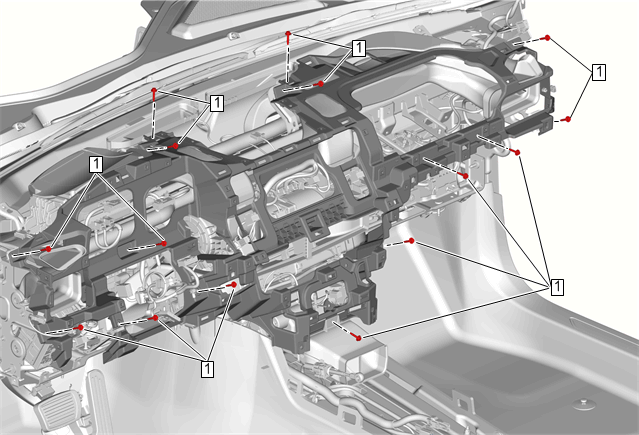

Instrument Carrier Bolt (1) - Install and tighten [2x] 2.5 N.m (22 lb in)
Courtesy of GENERAL MOTORS COMPANY

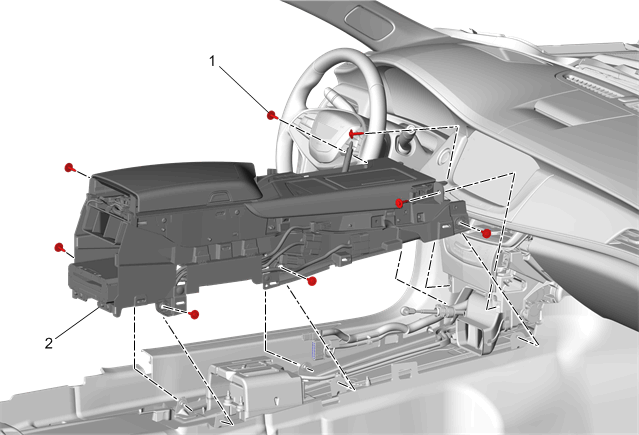

Front Floor Console (2) - Install - Front Floor Console Replacement
Courtesy of GENERAL MOTORS COMPANY

Steering Column (1) - Install - Steering Column Replacement (Without Driver Monitoring System Camera)Steering Column Replacement (With Driver Monitoring System Camera)
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Lower Airbag - Driver Side (2) - Install - Instrument Panel Lower Airbag Replacement - Driver Side
Courtesy of GENERAL MOTORS COMPANY

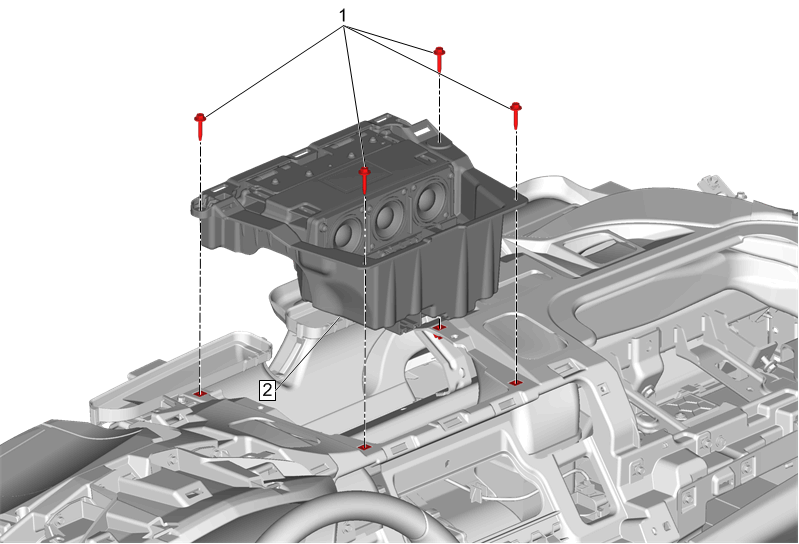

Radio Front Center Speaker (2) - Install - Radio Front Center Speaker Replacement (UQA, UQS)Radio Front Center Speaker Replacement (UQH)
Courtesy of GENERAL MOTORS COMPANY

Instrument Cluster (2) - Install - Instrument Cluster Replacement
Courtesy of GENERAL MOTORS COMPANY

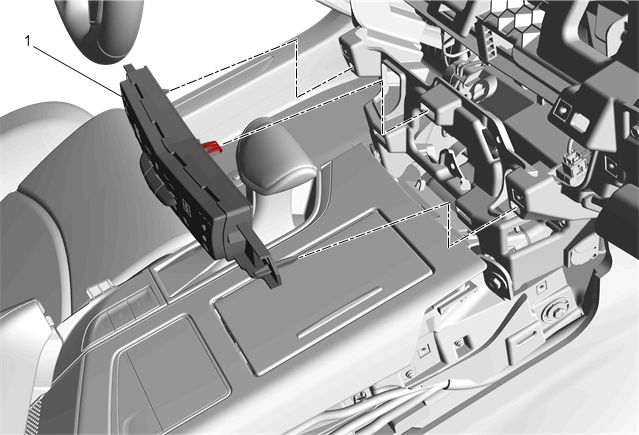

Heater and Air Conditioning User Interface Control (1) - Install - Heater and Air Conditioning User Interface Control Replacement
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Trim Plate (2) - Install - Instrument Panel Trim Plate Replacement
Courtesy of GENERAL MOTORS COMPANY

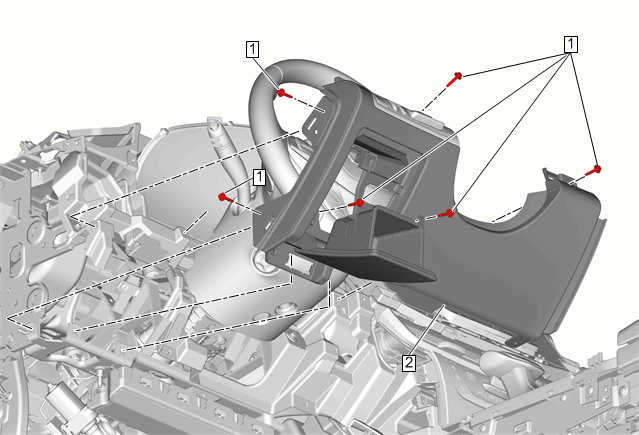

Instrument Panel Knee Bolster (2) - Install - Instrument Panel Knee Bolster Replacement
Enable the SIR System. SIR Disabling and Enabling
