Radio Front Center Speaker Replacement (UQA, UQS)

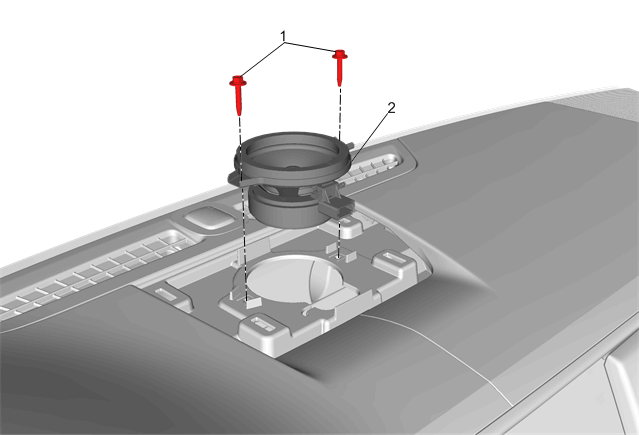

GM4245622
Callout Component Name
Preliminary Procedure
Radio Front Center Speaker Grille Replacement
1 Radio Front Center Speaker Bolt [2x]
CAUTION:

Refer to Fastener Caution .


Tighten
2.5 N.m (22 lb in)
2 Radio Front Center Speaker
Procedure
Disconnect the electrical connector.
