Instrument Panel Trim Plate Replacement

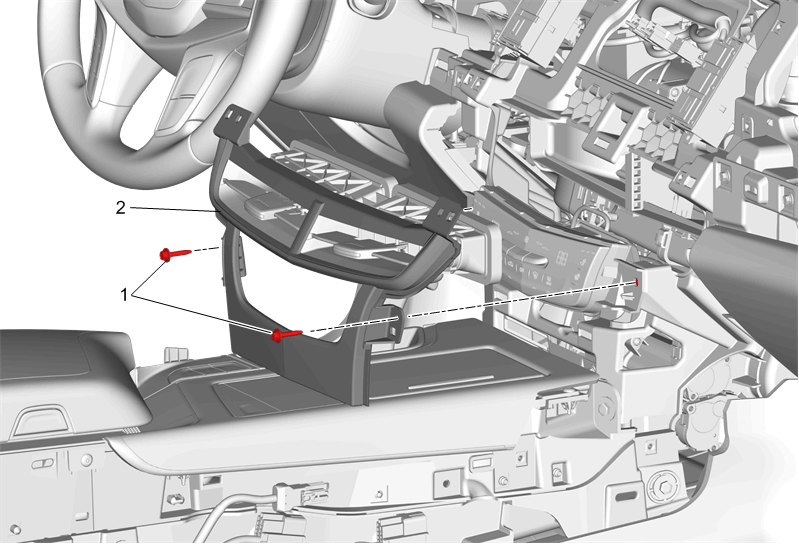

GM4252226Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedure

  1. Radio Control Assembly Replacement
  2. Front Floor Console Extension Panel Replacement - Left Side
  3. Front Floor Console Extension Panel Replacement - Right Side
1 Instrument Panel Trim Plate Bolt [2X]
CAUTION:

Refer to Fastener Caution .


Tighten
2.5 N.m (22 lb in)
2 Instrument Panel Trim Plate

Procedure

  1. Lift the plate to clear the front floor console.
  2. Disconnect the electrical connectors.
  3. Transfer components as necessary.
