Air Distributor Center Duct Replacement

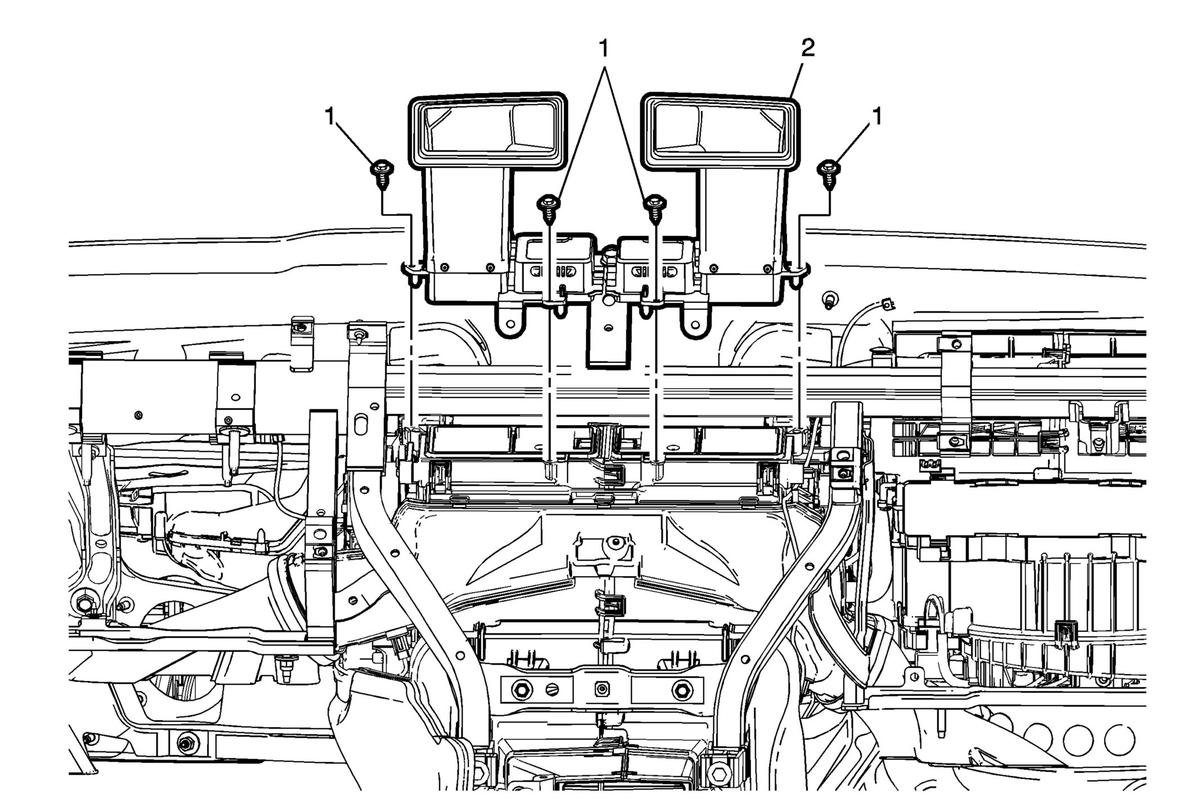

GM3511516Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Remove the instrument panel carrier assembly. Refer to Instrument Carrier Replacement .
  2. Remove the left side air distributor duct. Refer to Air Distributor Duct Replacement - Left Side .
  3. Remove the right side air distributor duct. Refer to Air Distributor Duct Replacement - Right Side .
1 Air Distributor Center Duct Bolt (Qty: 4)
CAUTION:

Refer to Fastener Caution .
2 Air Distributor Center Duct
