Installation Procedure

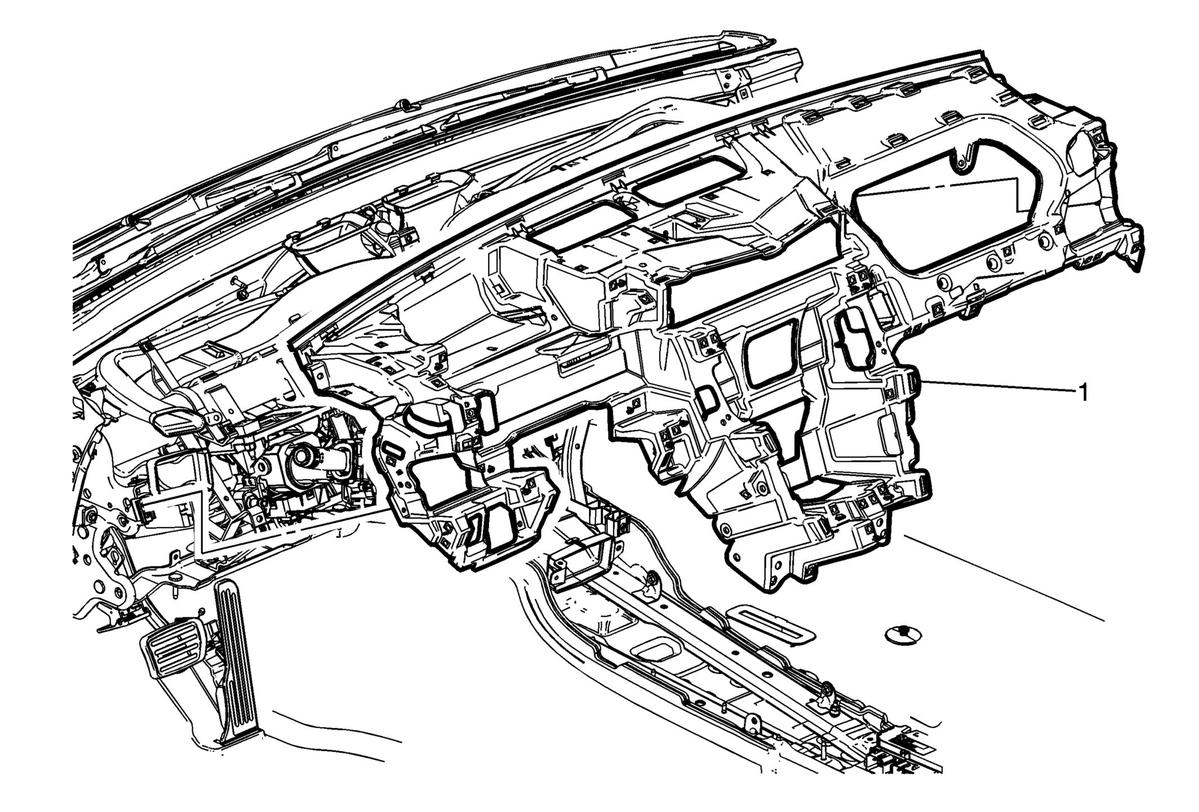

- With the aid of an assistant, load the instrument carrier (1) to the instrument panel tie bar.
- Reposition the instrument panel wiring harness into the vehicle position as was noted in the removal and connect the fasteners securing the instrument panel wiring harness to the instrument carrier (1).

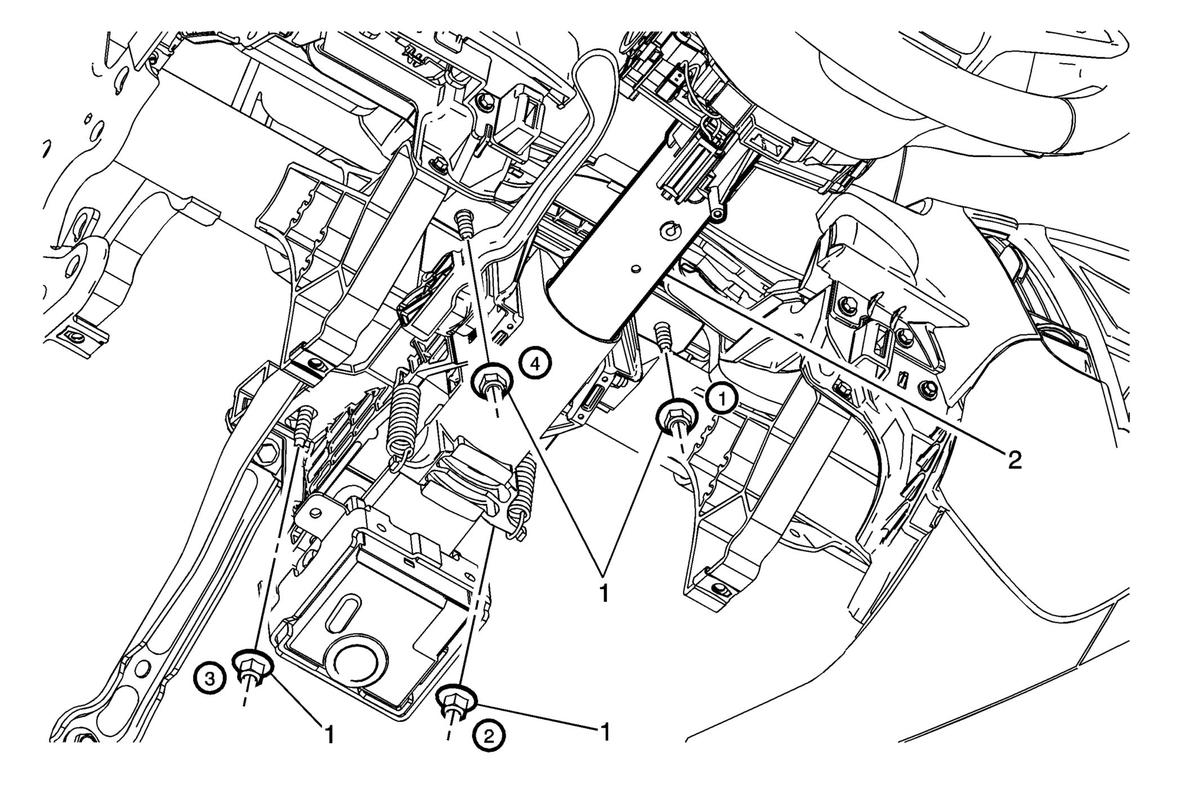

- Instrument Carrier Bolt (1) - Install and tighten [6x]2.5 N.m (22 lb in)CAUTION:
Refer to Fastener Caution .

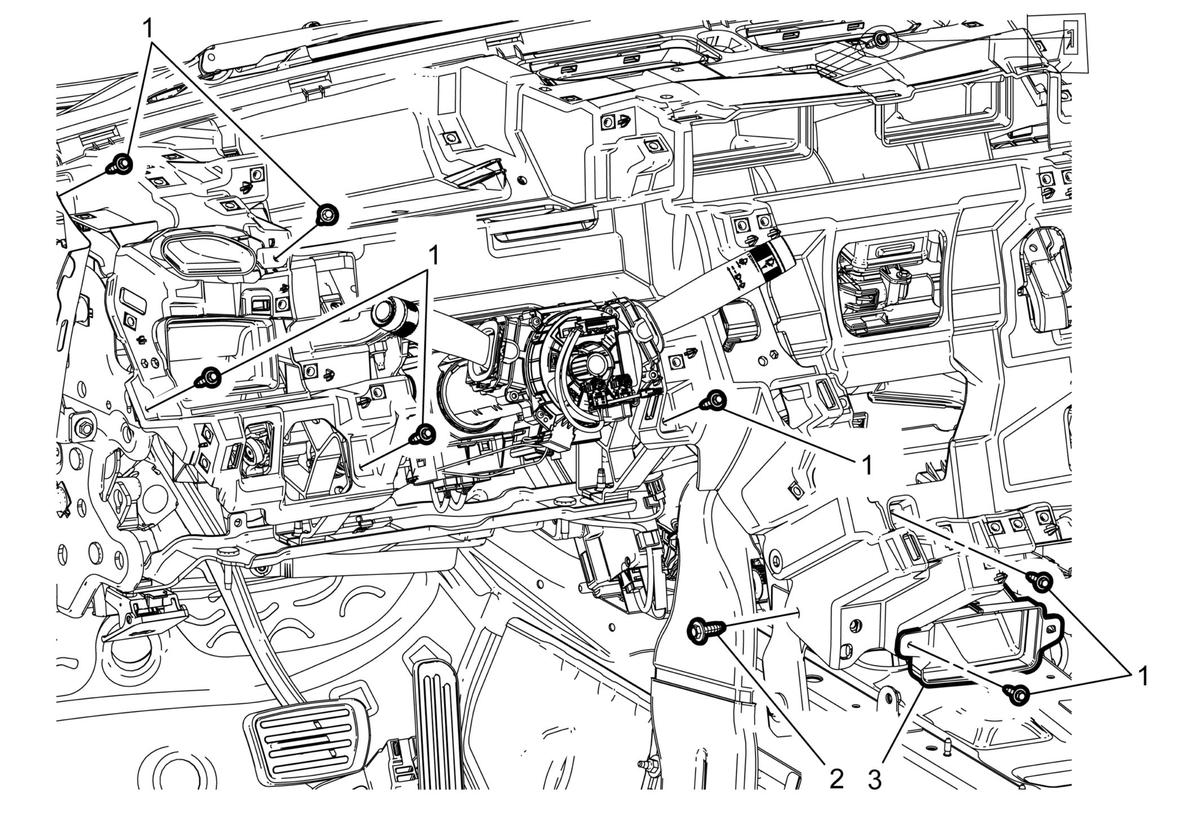

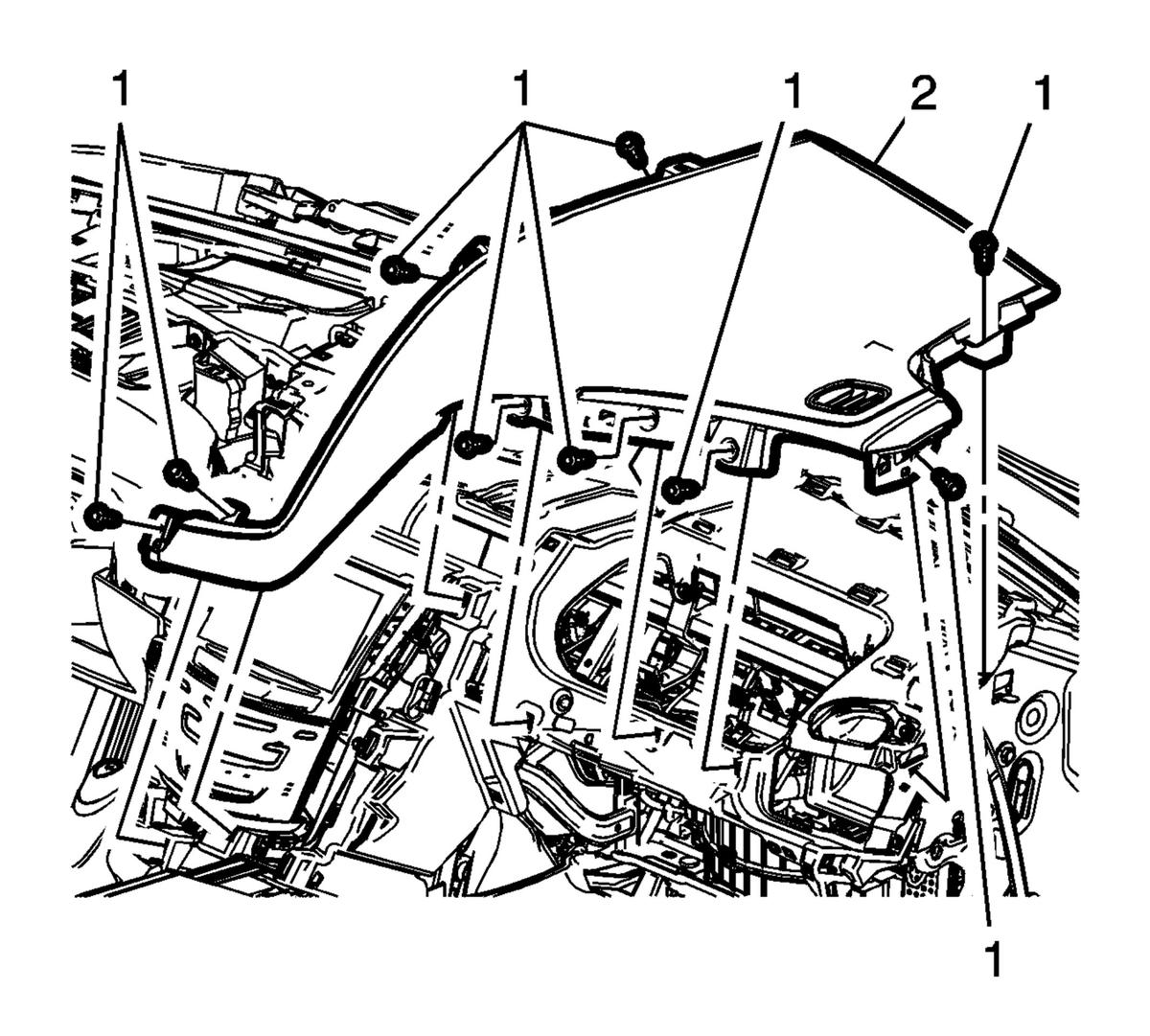

- Instrument Panel Bolt (2) - Install and tighten7 N.m (62 lb in)
- Instrument Carrier Bolt (1) - Install and tighten [7x]2.5 N.m (22 lb in)
- Front Floor Console Rear Air Duct (3) - Install - Front Floor Console Rear Air Duct Replacement

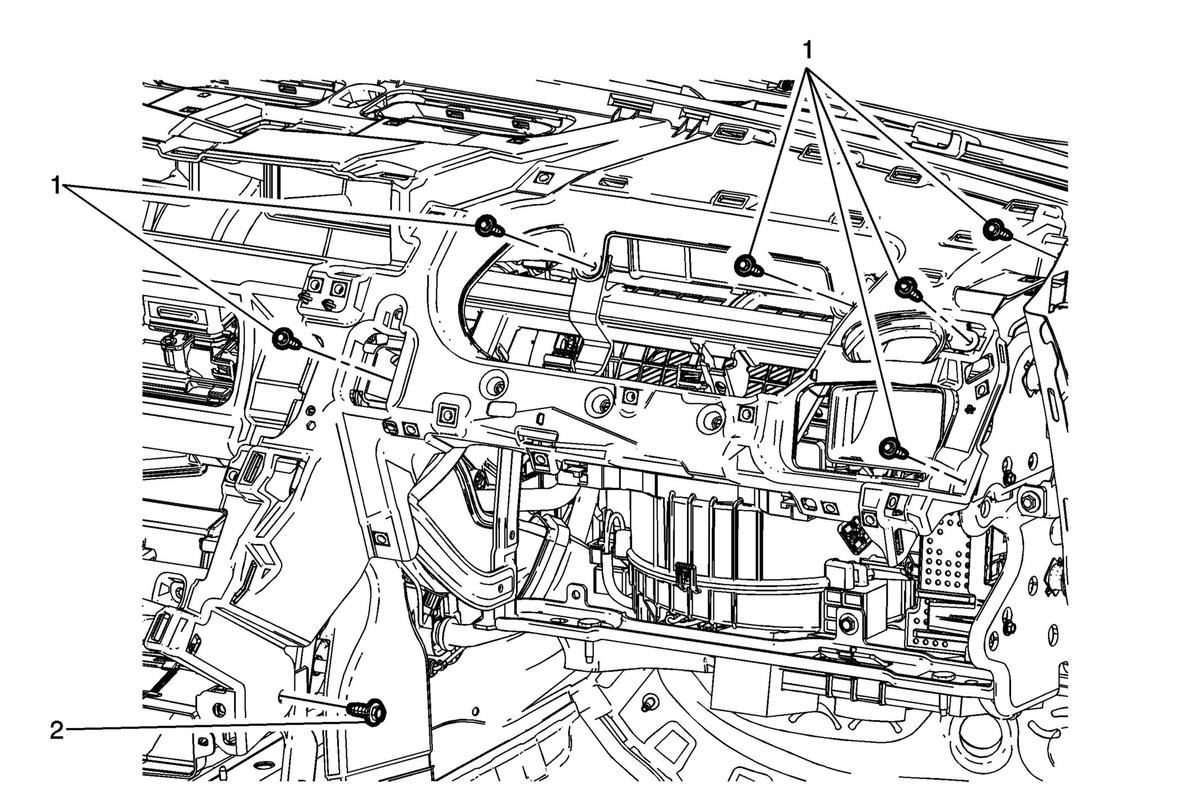

- Instrument Panel Bolt (2) - Install and tighten7 N.m (62 lb in)

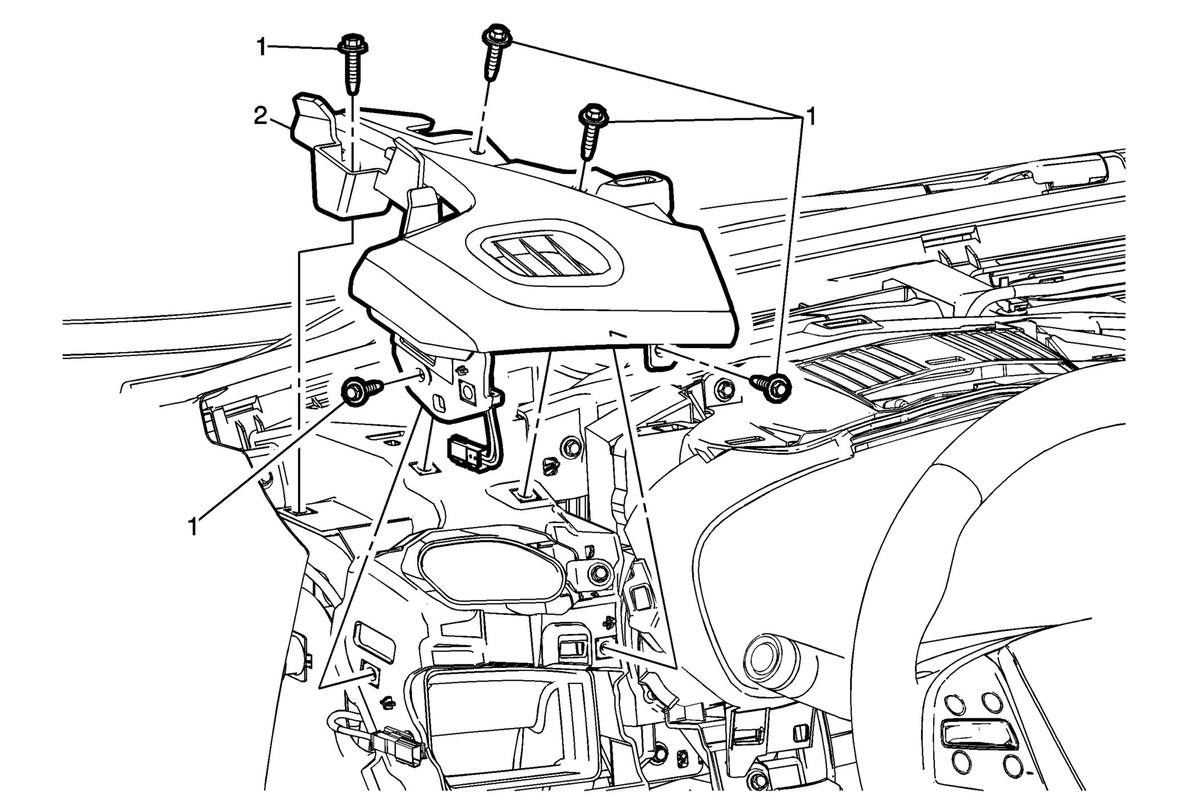

- Head-Up Display (2) - Install - Head-Up Display Replacement
- Instrument Cluster (2) - Install - Instrument Cluster Replacement
- Instrument Panel Trim Pad - Right Side (2) - Install - Instrument Panel Trim Pad Replacement (Left Side) Instrument Panel Trim Pad Replacement (Right Side)
- Instrument Panel Trim Pad - Left Side (2) - Install - Instrument Panel Trim Pad Replacement (Left Side) Instrument Panel Trim Pad Replacement (Right Side)

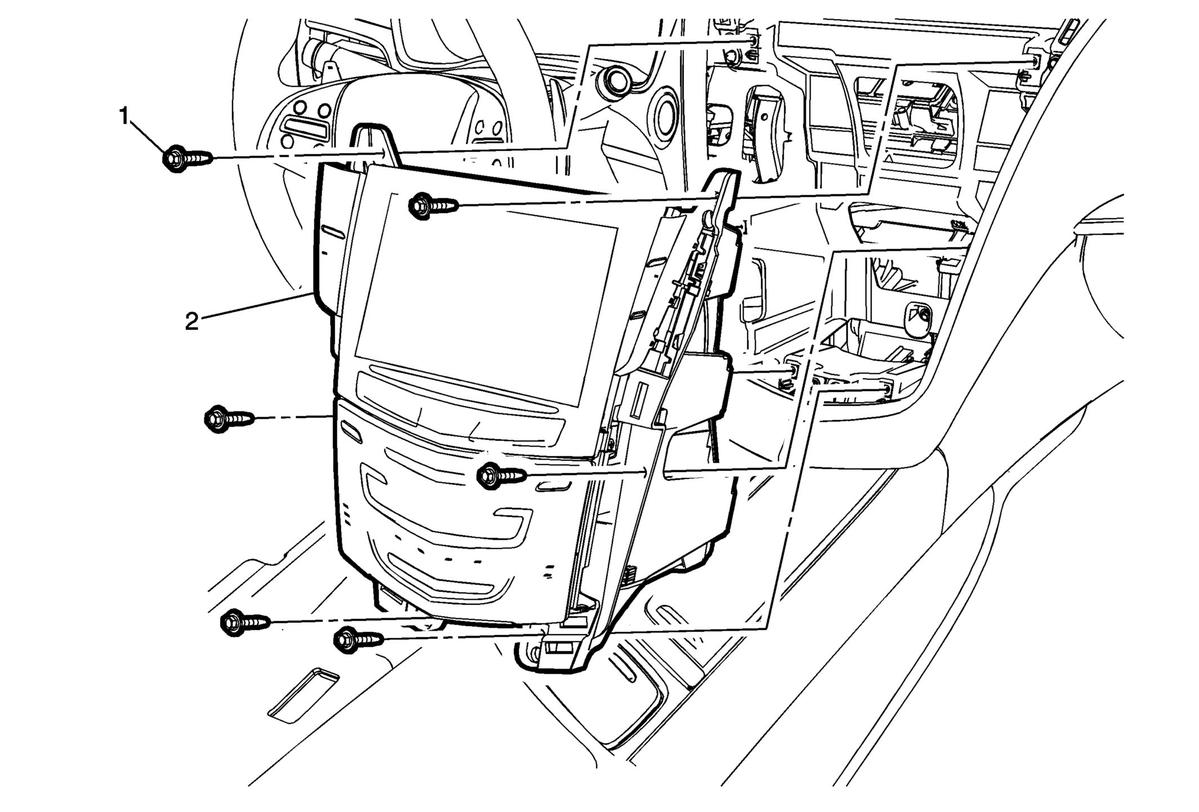

- Instrument Panel Accessory Bracket (2) - Install - Instrument Panel Accessory Bracket Replacement
- Steering Column (2) - Install - Steering Column Replacement (N37)Steering Column Replacement (N38)

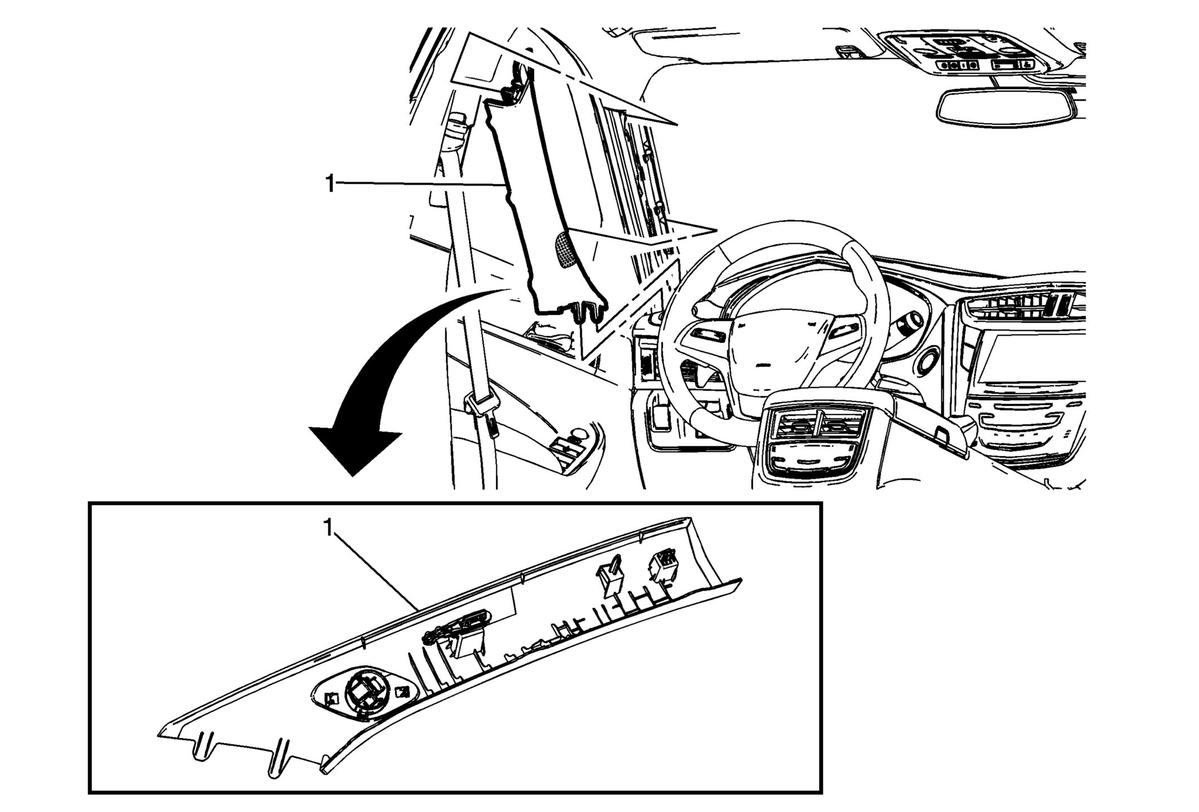

- Windshield Garnish Molding (1) - Install - Windshield Garnish Molding Replacement
[2x]
- Front Floor Console (1) - Install - Front Floor Console Replacement
