Instrument Panel Accessory Bracket Replacement

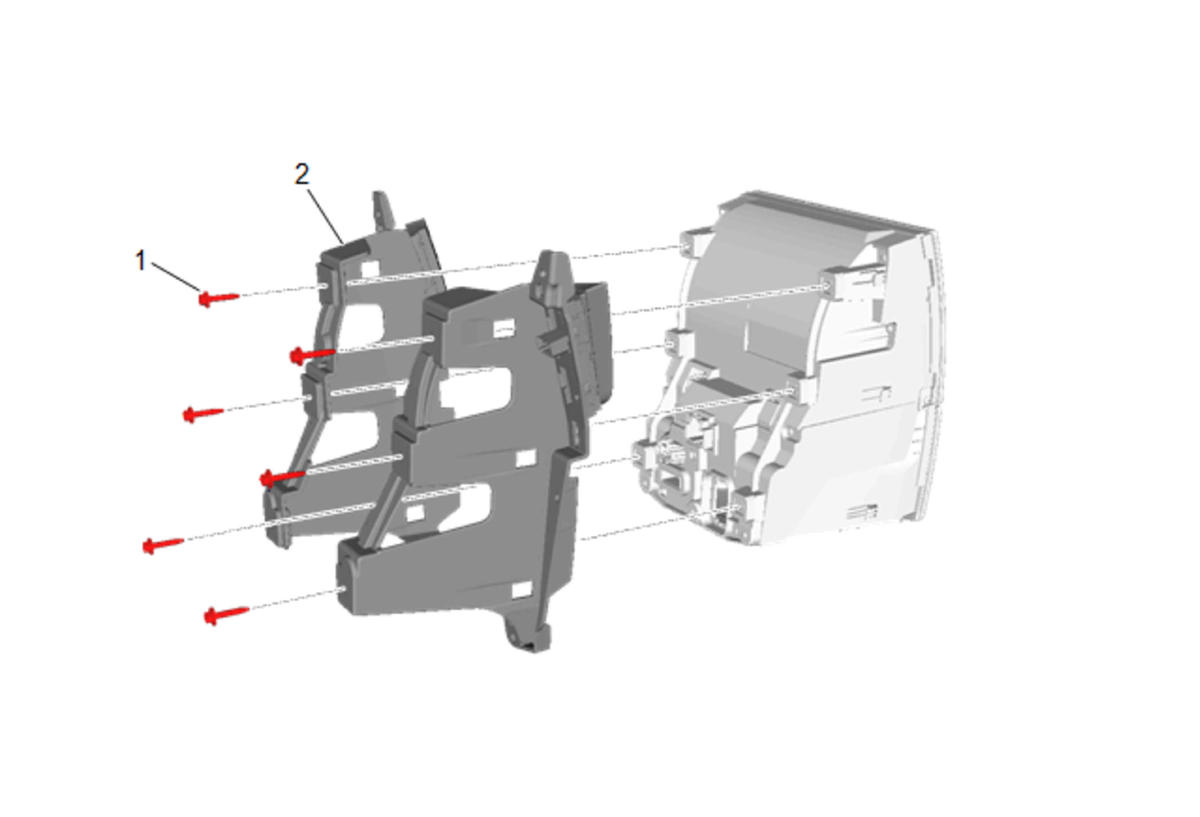

GM5356228Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Radio Control Assembly Replacement
1 Instrument Panel Accessory Bracket Bolt [6x]
CAUTION:

Refer to Fastener Caution .


Tighten
2.5 N.m (22 lb in)
2 Instrument Panel Accessory Bracket [2x]
