Front Floor Console Rear Air Duct Replacement

Courtesy of GENERAL MOTORS COMPANY

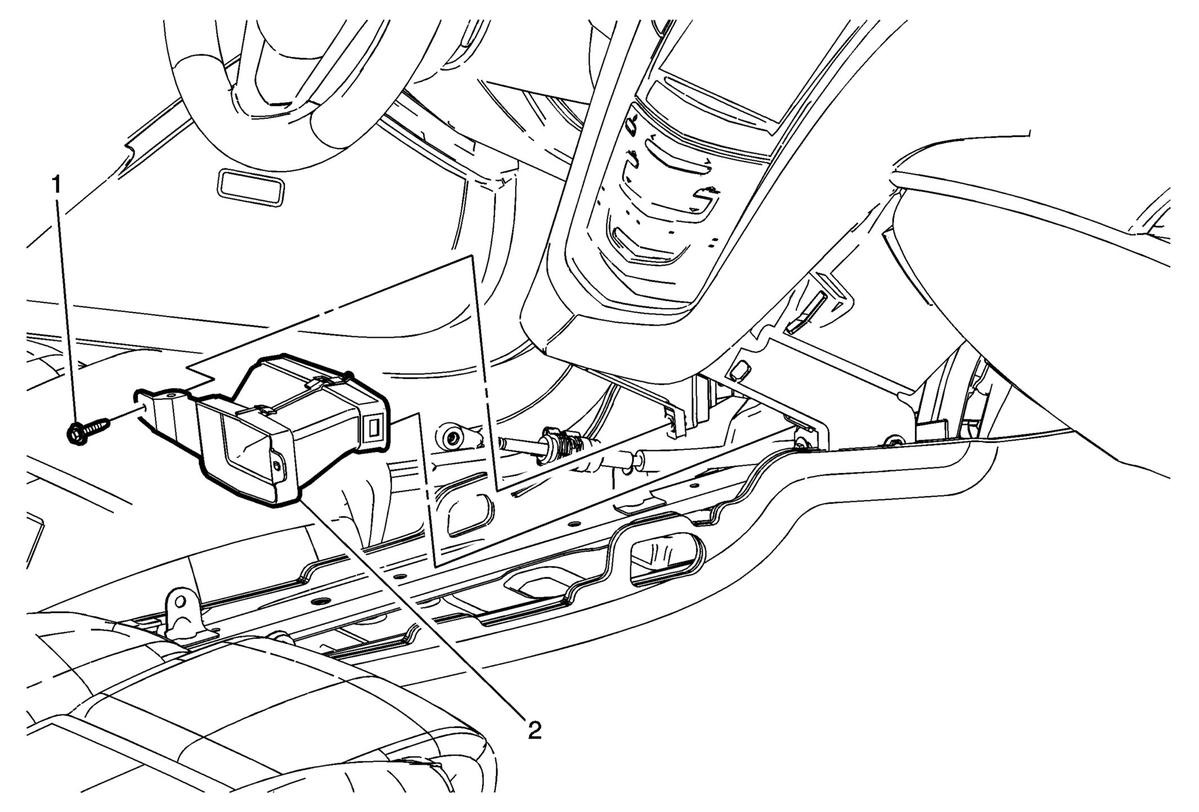

Call out	Component Name
Preliminary Procedure Remove the front floor console assembly. Refer to Front Floor Console Replacement .
1	Front Floor Console Rear Air Duct Fastener CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Front Floor Console Rear Air Duct Procedures Disconnect the harness retainer from the front floor console rear air duct. Unsnap the front floor console rear air duct from the heater and air conditioning evaporator and blower module assembly. Maneuver the front floor console rear air duct out from behind the instrument panel.

Call out

Component Name

Preliminary Procedure
Remove the front floor console assembly. Refer to Front Floor Console Replacement .

Front Floor Console Rear Air Duct Fastener

CAUTION:

Tighten
2.5 N.m (22 lb in)

Front Floor Console Rear Air Duct

Procedures

Disconnect the harness retainer from the front floor console rear air duct.
Unsnap the front floor console rear air duct from the heater and air conditioning evaporator and blower module assembly.
Maneuver the front floor console rear air duct out from behind the instrument panel.
