Instrument Panel Lower Airbag Replacement - Passenger Side

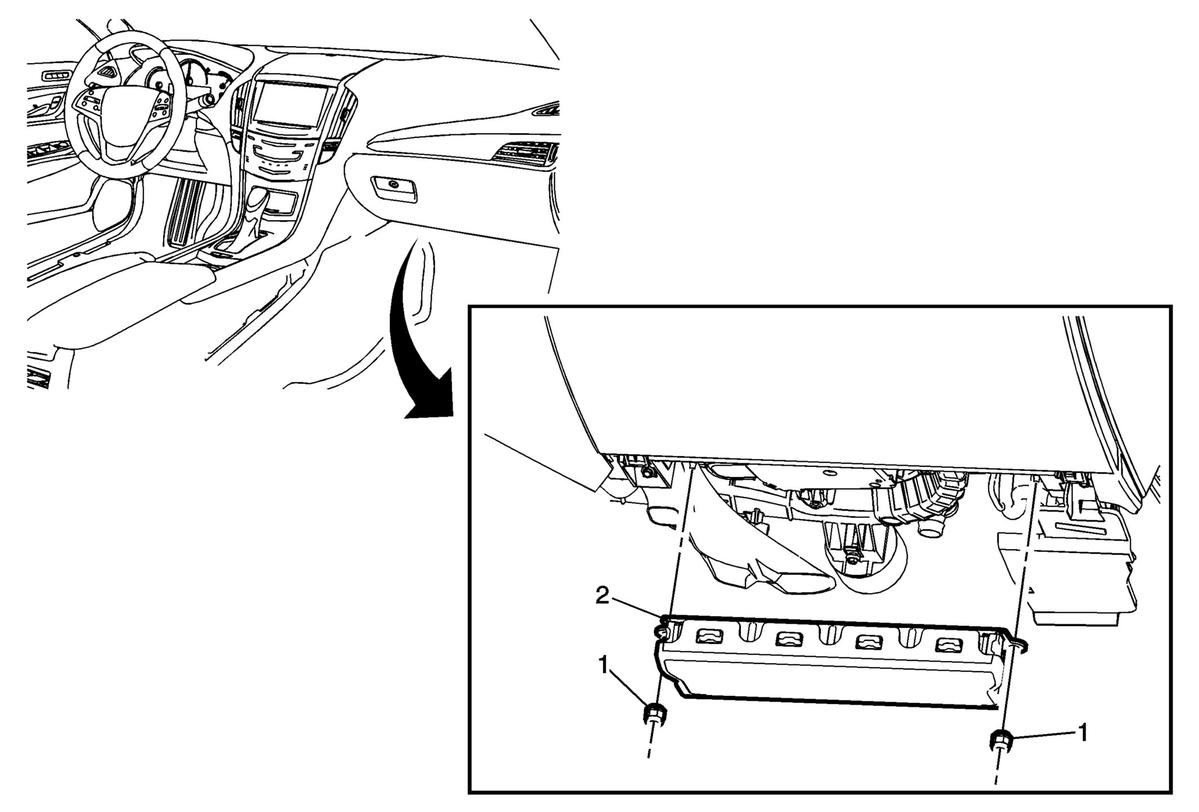

GM2816449Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
WARNING:

Refer to SIR Inflator Module Handling and Storage Warning .

WARNING:

Refer to SIR Warning .

Preliminary Procedures

  1. Disable the SIR system. Refer to SIR Disabling and Enabling .
  2. Remove the instrument panel lower trim panel insulator. Refer to Instrument Panel Lower Trim Panel Insulator Replacement (Left Side) , or Instrument Panel Lower Trim Panel Insulator Replacement (Right Side) .
1 Inflatable Restraint Instrument Panel Lower Module Nut (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Tighten
8 N.m (71 lb in)
2 Inflatable Restraint Instrument Panel Lower Module Assembly - Passenger Side

Procedure

  1. Disconnect the airbag electrical connector.
  2. Refer to Inflatable Restraint Module Handling and Scrapping .
  3. Enable the SIR system. Refer to SIR Disabling and Enabling .
