Instrument Panel Lower Trim Panel Insulator Replacement (Left Side)

Courtesy of GENERAL MOTORS COMPANY

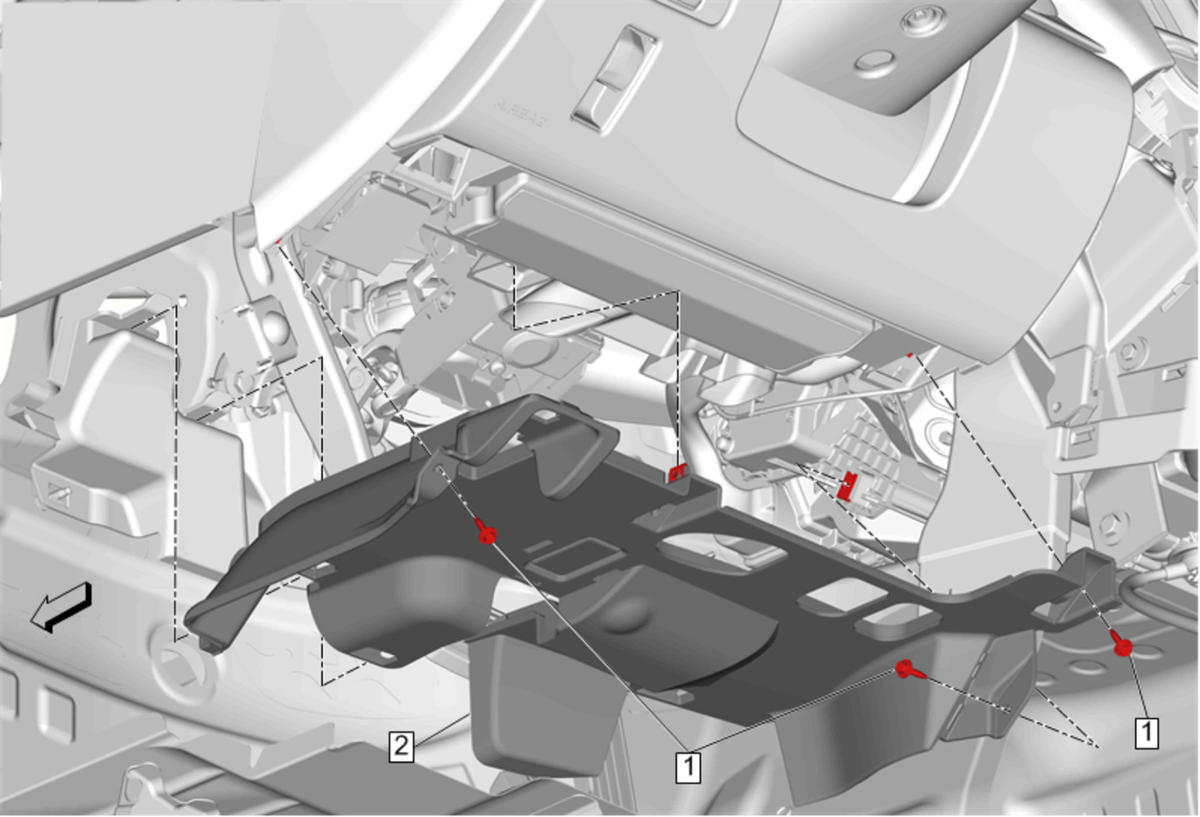

Callout	Component Name
Preliminary Procedure Front Floor Console Extension Panel Replacement - Left Side
1	Instrument Panel Insulator Bolt [3x] CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Instrument Panel Lower Trim Panel Insulator - Left Side Procedure Use a flat bladed plastic trim tool. Disconnect the electrical connector. Unclip the hood release handle from the insulator panel.

Callout

Component Name

Instrument Panel Insulator Bolt [3x]

CAUTION:

Tighten
2.5 N.m (22 lb in)

Instrument Panel Lower Trim Panel Insulator - Left Side

Procedure
