Instrument Panel Lower Trim Panel Replacement

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the left instrument panel lower trim panel insulator. Refer to Instrument Panel Lower Trim Panel Insulator Replacement (Left Side) Instrument Panel Lower Trim Panel Insulator Replacement (Right Side) .

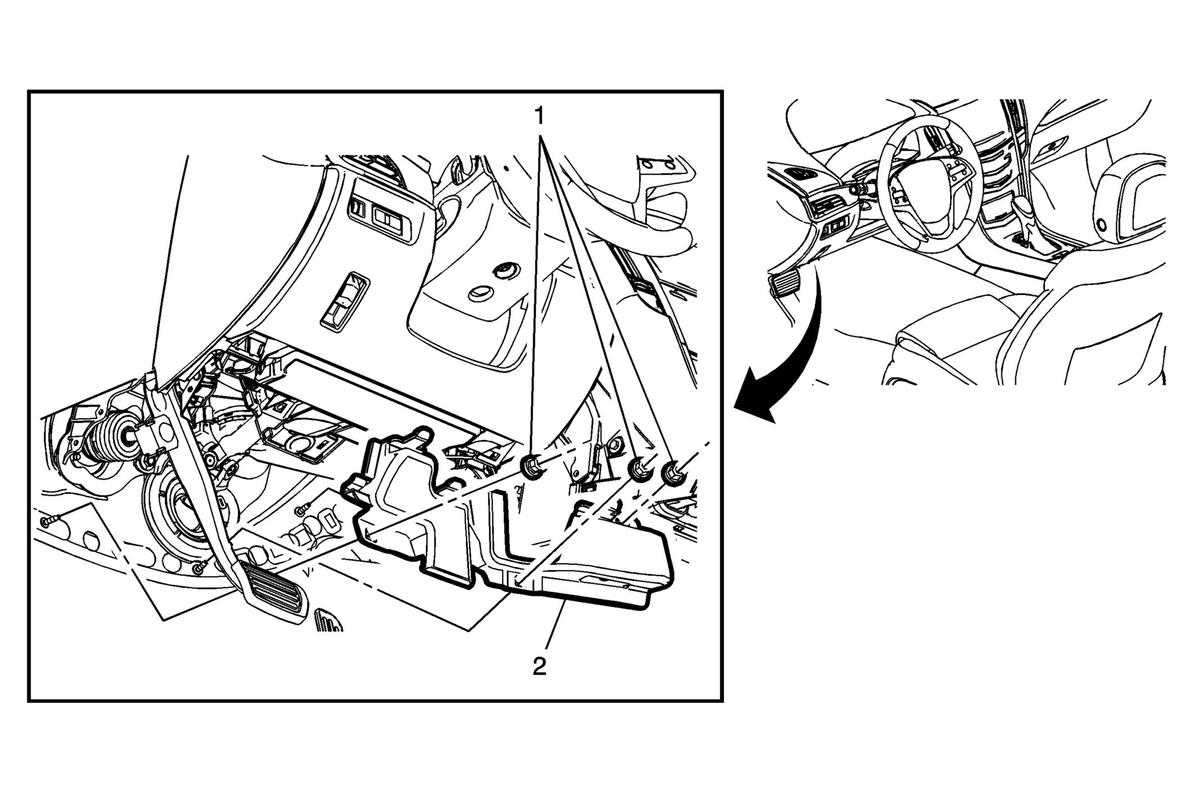

1	Instrument Panel Insulator Fasteners (Qty: 3) CAUTION: Refer to Fastener Caution .
2	Instrument Panel Lower Trim Panel
