Installation Procedure
- Install the brake hose.

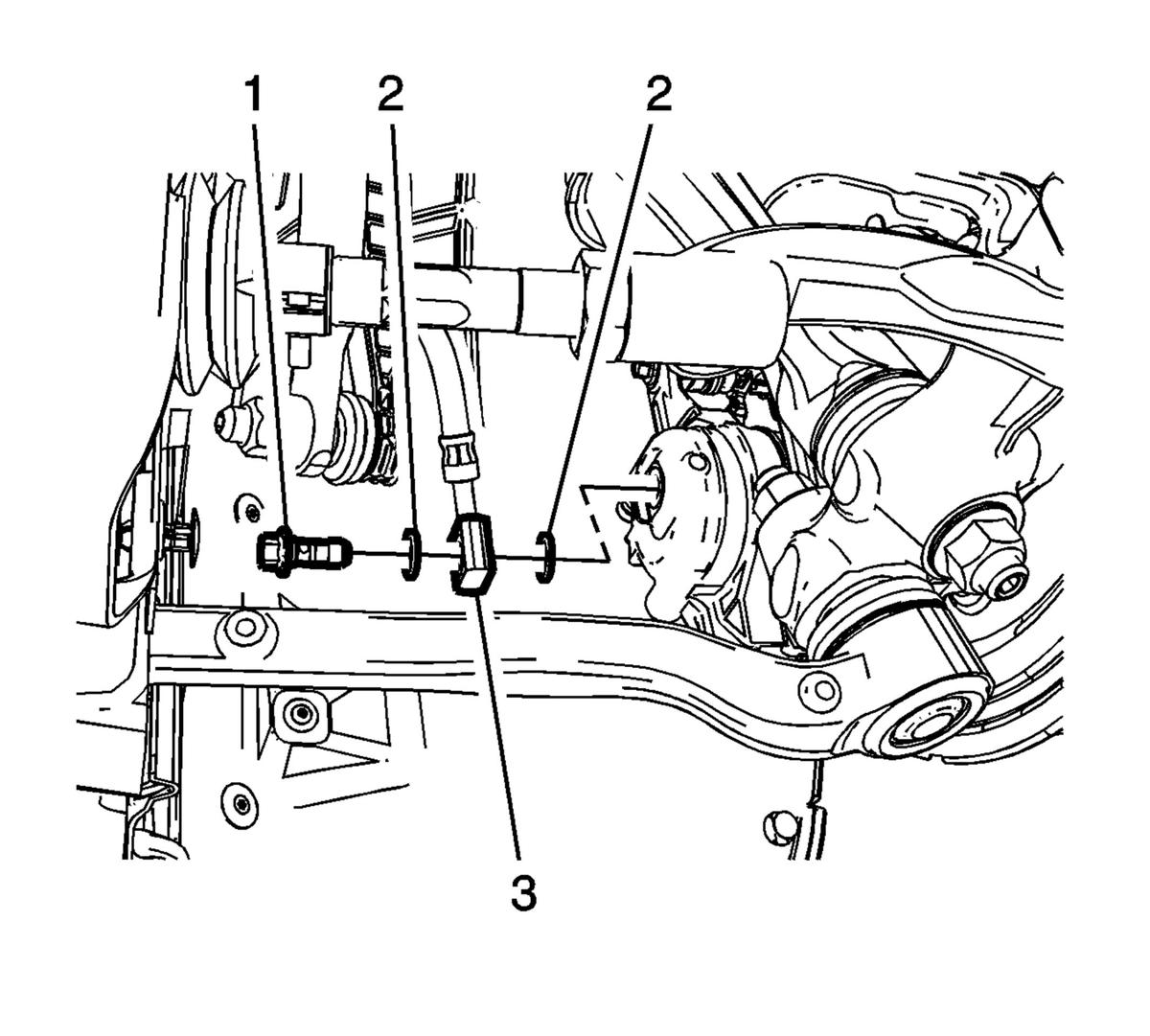

Assemble the brake hose fitting bolt (1) with new brake hose fitting gaskets (2) to the brake hose fitting (3).
- Install the brake hose assembly to the brake caliper and tighten the brake hose fitting bolt to 52 N.m (38 lb ft).
Install the brake hose bracket bolt (1) and tighten to 10 N.m (89 lb in).
Secure the brake to from the wheel speed sensor harness clips (1).
Install the brake hose retaining clip (1).
Connect the brake pipe fitting (1) to the brake hose.
- Tighten the brake pipe fitting to 18 N.m (13 lb ft).
- Install the front wheelhouse splash shield. Refer to Front Wheelhouse Splash Shield Replacement (All Wheel Drive) , or Front Wheelhouse Splash Shield Replacement (Rear Wheel Drive) .
- Bleed the hydraulic brake system. Refer to Hydraulic Brake System Bleeding (Manual) , or Hydraulic Brake System Bleeding (Pressure) .
- Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation (Non V-Series) , or Tire and Wheel Removal and Installation (V-Series) .
CAUTION:
Refer to Fastener Caution .
