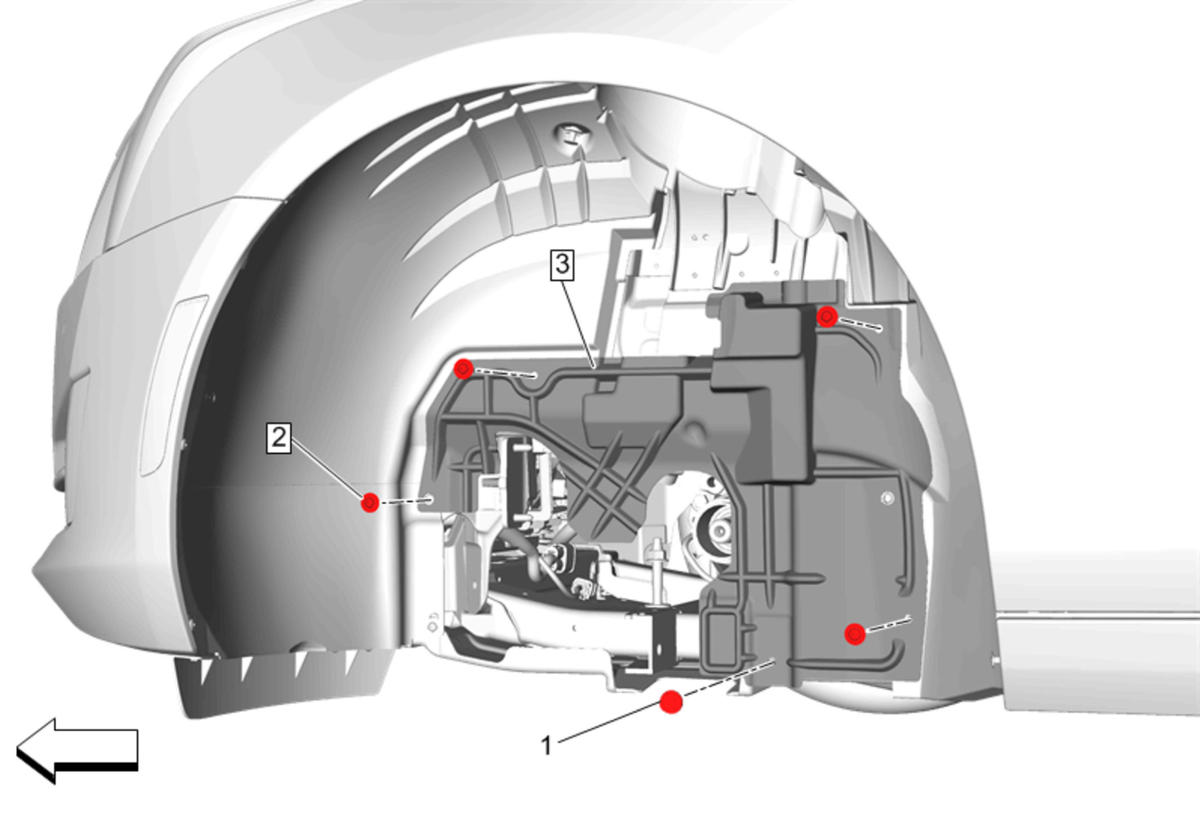

Front Wheelhouse Splash Shield Replacement (All Wheel Drive)
| Callout | Component Name |
|---|---|
| Preliminary Procedure Tire and Wheel Removal and Installation (Non V-Series) |
|
| 1 | Front Wheelhouse Splash Shield Retainer |
| 2 | Front Wheelhouse Splash Shield Fastener [4x]
CAUTION:
Refer to Fastener Caution Tighten 2.5 N.m (22 lb in) |
| 3 | Front Wheelhouse Splash Shield |
