Front Wheelhouse Splash Shield Replacement (Rear Wheel Drive)

Courtesy of GENERAL MOTORS COMPANY

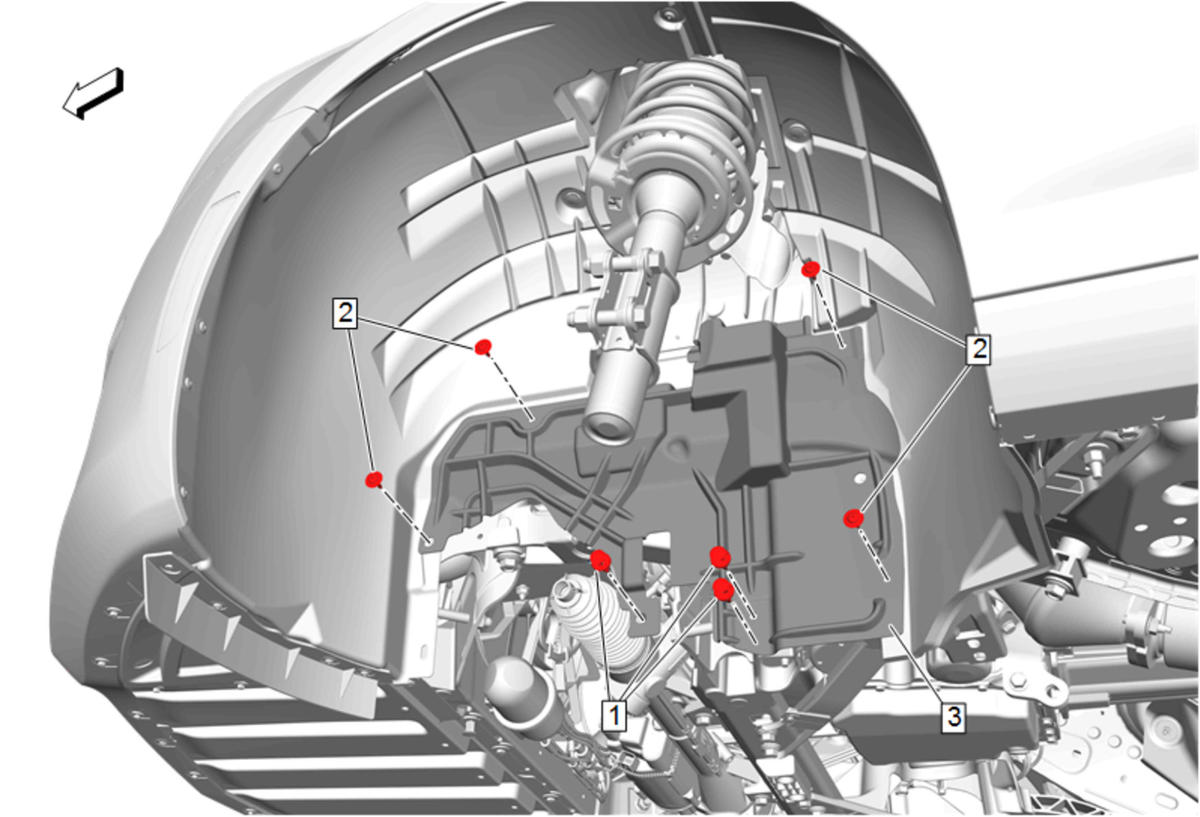

Callout	Component Name
Preliminary Procedure  Remove the tire and wheel assembly. Tire and Wheel Removal and Installation (V-Series)
1	Front Wheelhouse Splash Shield Push-In Retainer (Qty: 3)
2	Front Wheelhouse Splash Shield Screw (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten :  2.5 N.m (22 lb in)
3	Front Wheelhouse Splash Shield Procedure  Install the tire and wheel assembly. Tire and Wheel Removal and Installation (V-Series)
