Installation Procedure

Front Brake Hose - Install
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Install new brake hose fitting gaskets.

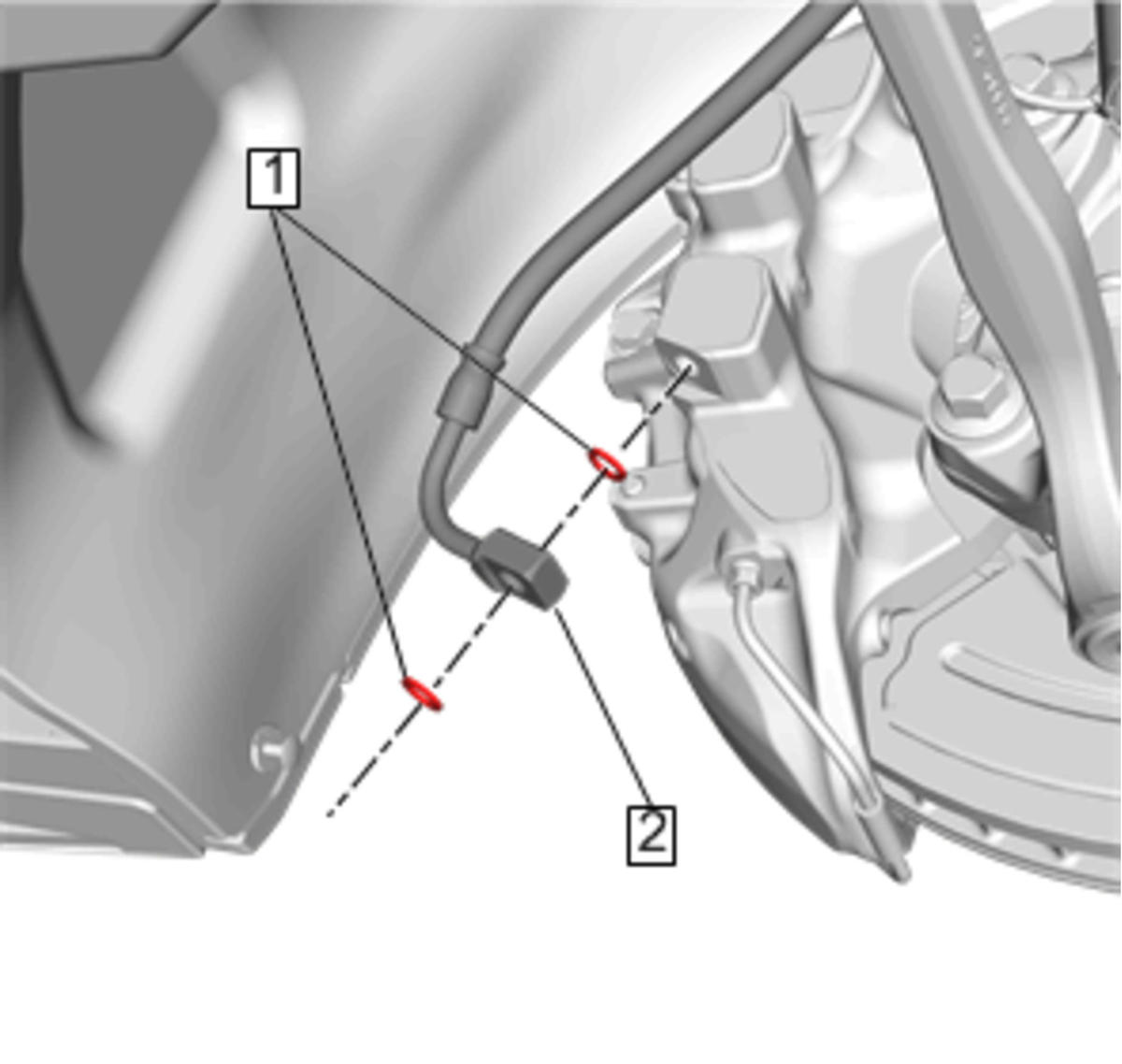

Brake Hose Fitting Gasket (1) [2x] @ Front Brake Hose (2) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Fastener Caution .

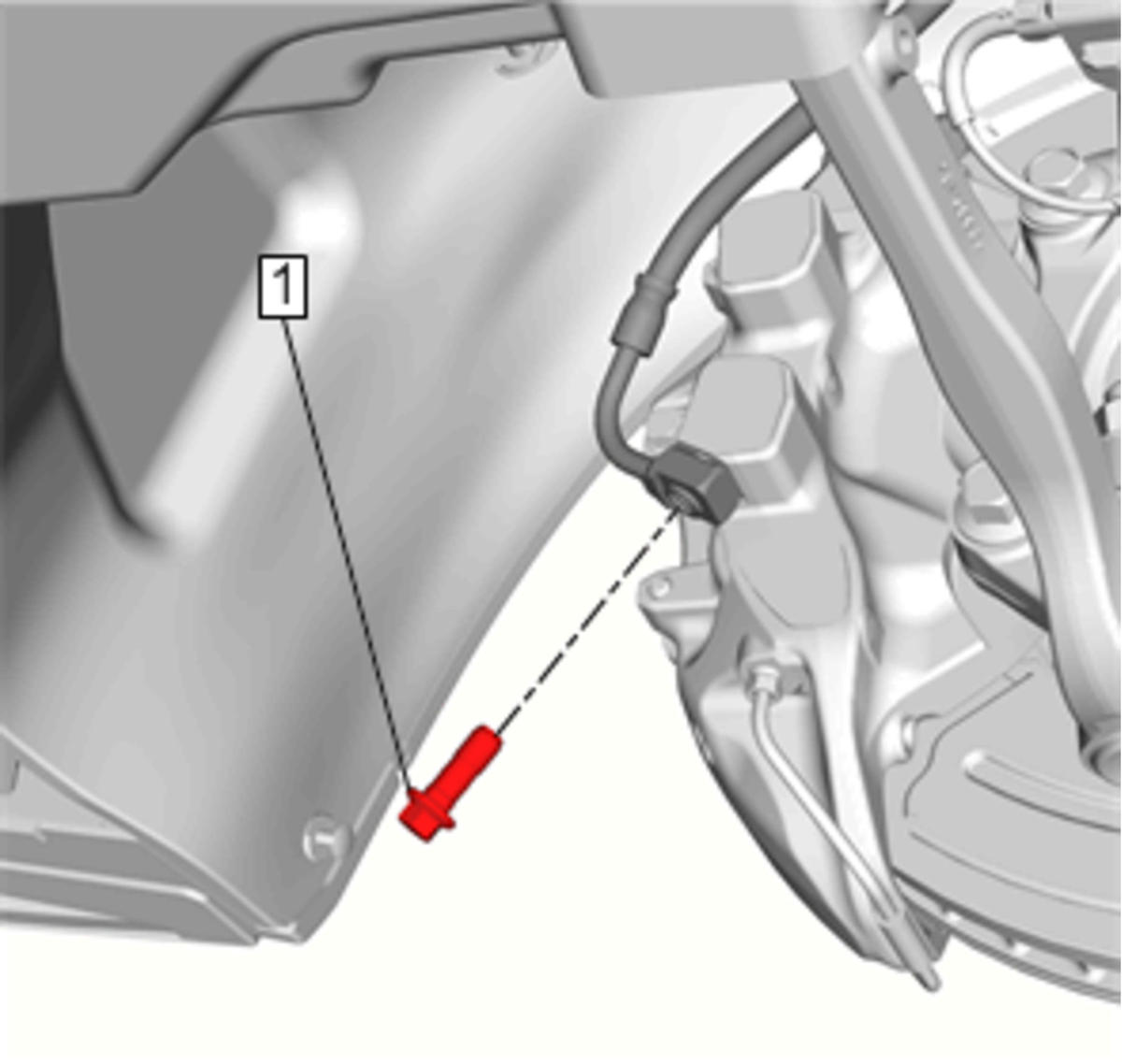

Brake Hose Fitting Bolt (1) - Install and tighten 40 N.m (30 lb ft)
Courtesy of GENERAL MOTORS COMPANY

Bolt (1) - Install and tighten 10 N.m (89 lb in)
Courtesy of GENERAL MOTORS COMPANY

Wheel Speed Sensor Wiring Harness Clip (1) [2x] @ Brake Hose - Install
Courtesy of GENERAL MOTORS COMPANY

Brake Hose Retainer (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Brake Pipe Fitting (1) - Install and tighten 18 N.m (13 lb ft)
Bleed the brake system. Hydraulic Brake System Bleeding (Manual) , or Hydraulic Brake System Bleeding (Pressure)
Front Wheelhouse Splash Shield Replacement (All Wheel Drive) , or Front Wheelhouse Splash Shield Replacement (Rear Wheel Drive) - Install
Tire and Wheel Removal and Installation (Non V-Series) , or Tire and Wheel Removal and Installation (V-Series) - Install
