Stop And Turn Signal Lamp Bulb Replacement

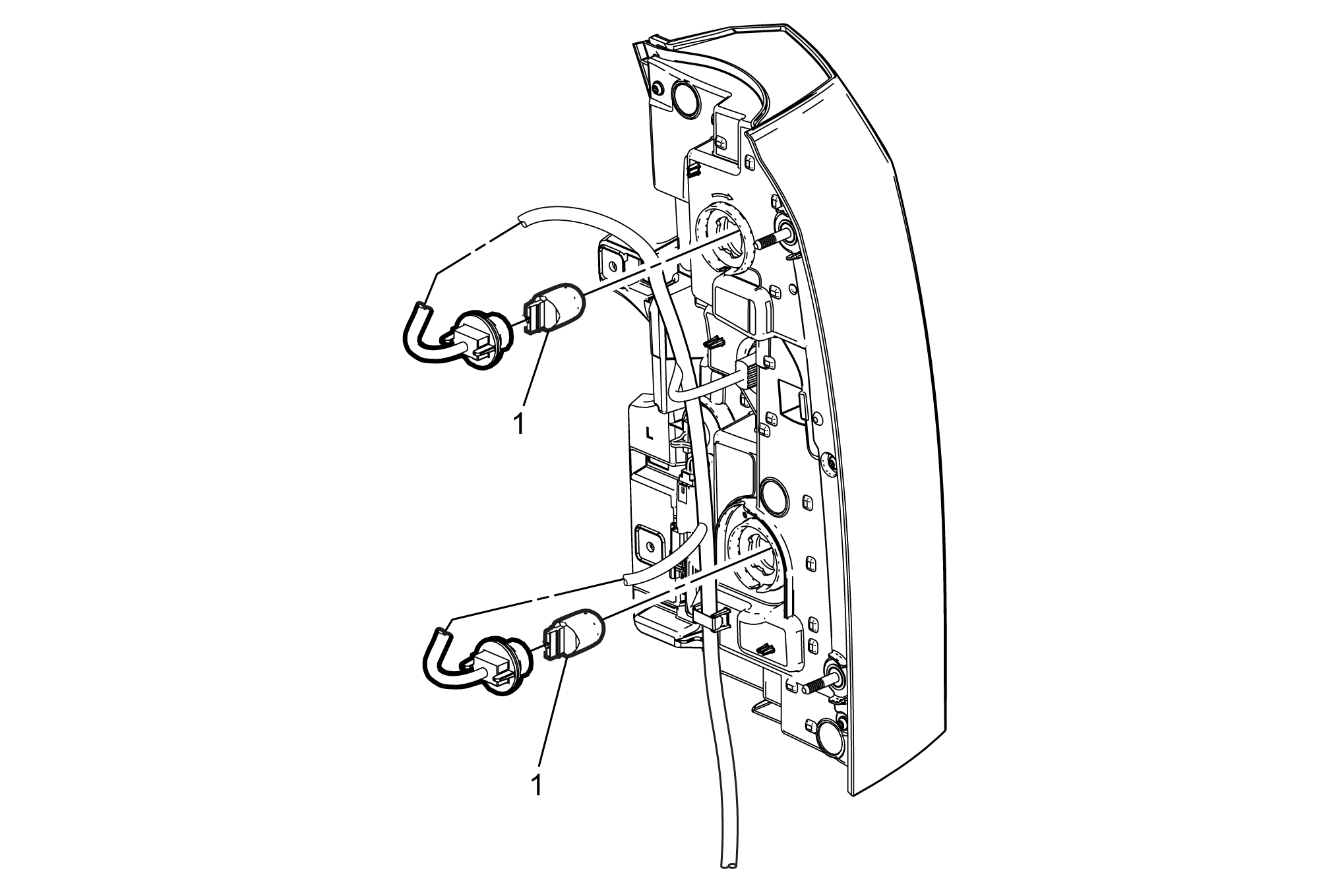

Fig 1: Stop And Turn Signal Lamp Bulb

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear body structure stop lamp. Refer to Rear Body Structure Stop Lamp Replacement (Chevrolet, GMC) Rear Body Structure Stop Lamp Replacement (Escalade) .
1	Stop and Turn Signal Lamp Bulb Procedure Rotate the bulb socket counterclockwise and pull from the rear body structure stop lamp. Pull the stop and turn signal lamp bulb straight out from the socket.

Callout

Component Name

Stop and Turn Signal Lamp Bulb

Procedure

Rotate the bulb socket counterclockwise and pull from the rear body structure stop lamp.
Pull the stop and turn signal lamp bulb straight out from the socket.
