Rear Body Structure Stop Lamp Replacement (Chevrolet, GMC)

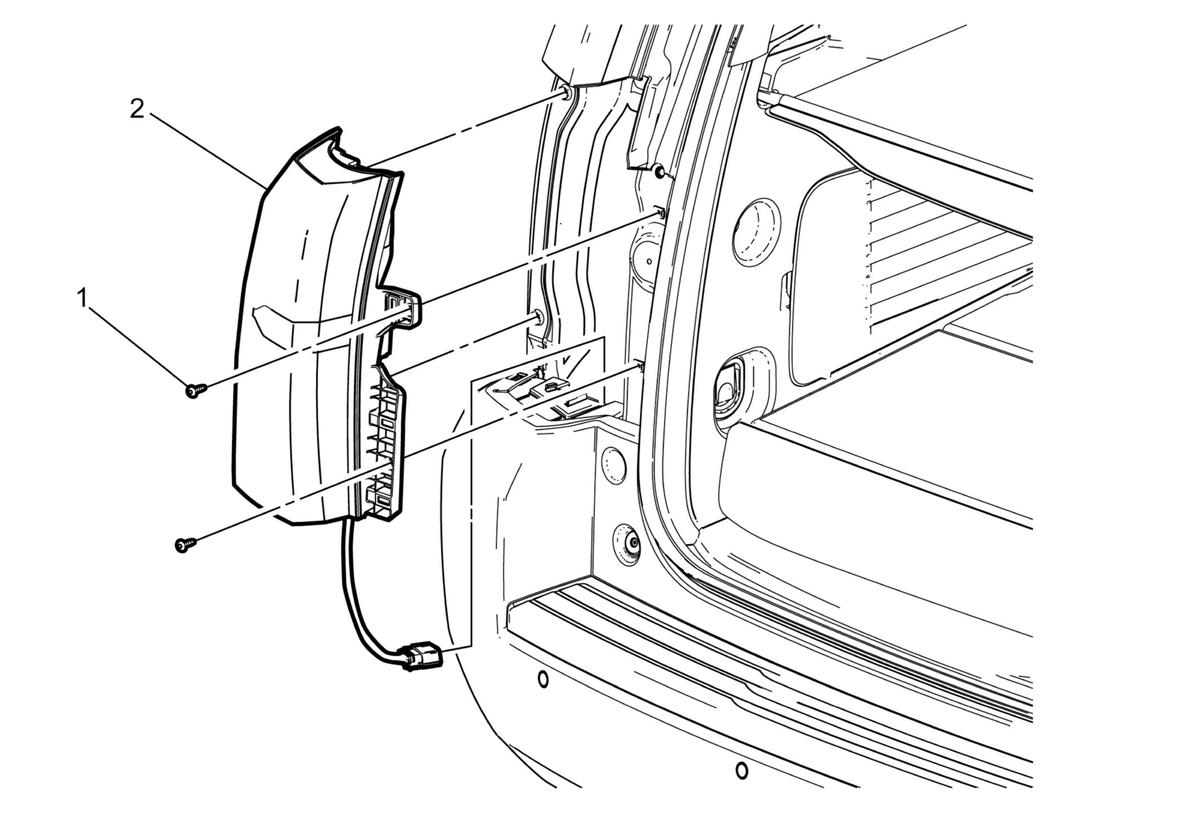

Fig 1: Rear Body Structure Stop Lamp (Chevrolet, GMC)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the back body opening side gutter-lower. Refer to Back Body Opening Side Gutter Replacement - Lower (Chevrolet, GMC) .
1	Rear Body Structure Stop Lamp Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (25 lb in)
2	Rear Body Structure Stop Lamp Procedure From underneath the rear bumper fascia disconnect the electrical connector. Firmly grasp the rear body structure stop lamp and pull straight back to release from vehicle.

Callout

Component Name

Preliminary Procedure
Remove the back body opening side gutter-lower. Refer to Back Body Opening Side Gutter Replacement - Lower (Chevrolet, GMC) .

Rear Body Structure Stop Lamp Bolt (Qty: 2)

CAUTION:

Tighten
2.5 N.m (25 lb in)

Rear Body Structure Stop Lamp

Procedure

From underneath the rear bumper fascia disconnect the electrical connector.
Firmly grasp the rear body structure stop lamp and pull straight back to release from vehicle.
