Rear Body Structure Stop Lamp Replacement (Escalade)

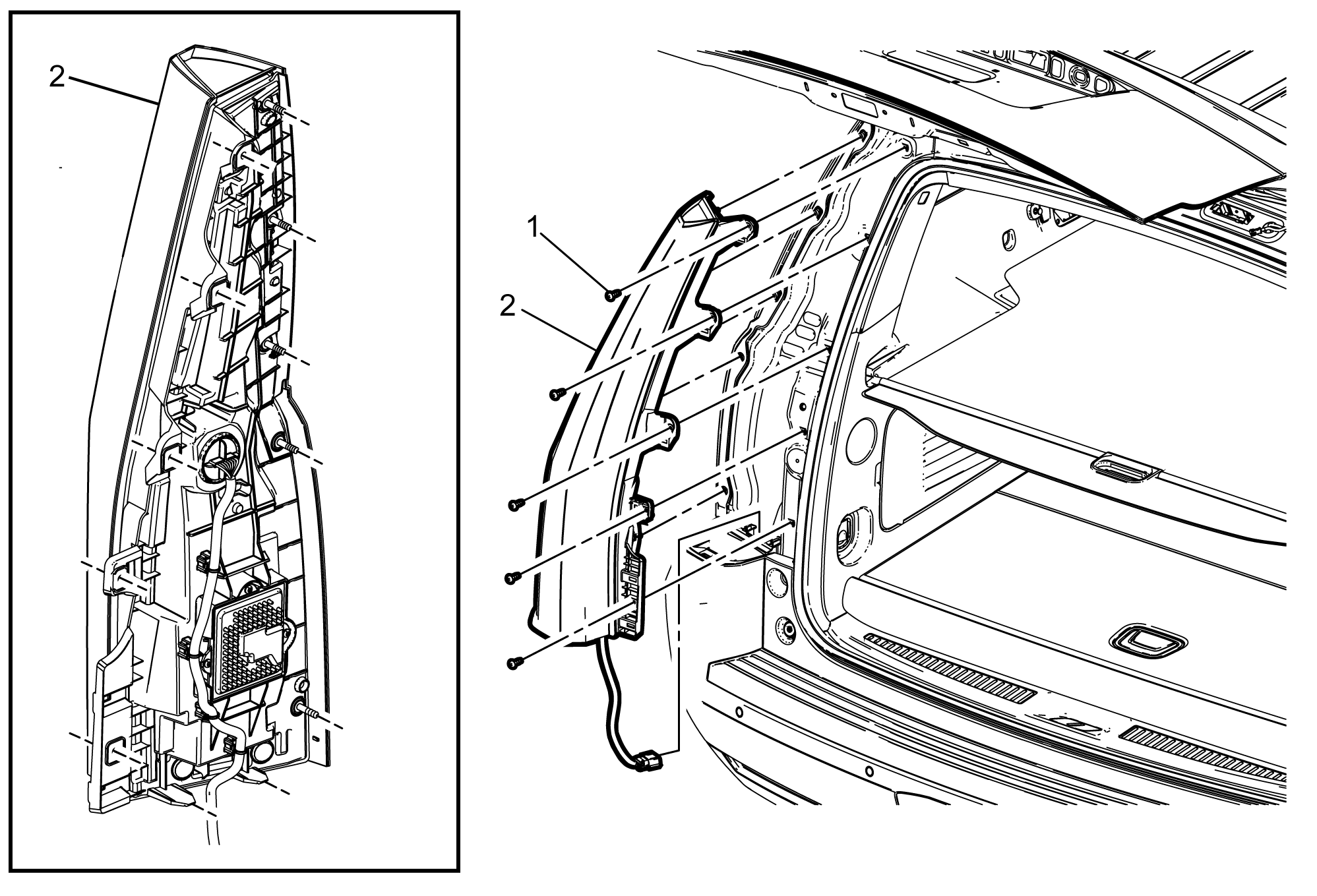

Fig 1: Rear Body Structure Stop Lamp (Escalade)
GM3656881Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedure

  1. Remove the back body opening side gutter-lower. Refer to Back Body Opening Side Gutter Replacement - Lower (Cadillac) .
  2. Remove the back body opening side gutter-upper. Refer to Back Body Opening Side Gutter Replacement - Upper (Cadillac) .
1 Rear Body Structure Stop Lamp Bolt (Qty: 5)
CAUTION:

Refer to Fastener Caution .


Tighten
2.5 N.m (22 lb in)
2 Rear Body Structure Stop Lamp

Procedure

  1. From underneath the rear bumper fascia disconnect the electrical connector.
  2. Firmly grasp the rear body structure stop lamp and pull straight back to release from vehicle.
