High Mount Stop Lamp Replacement

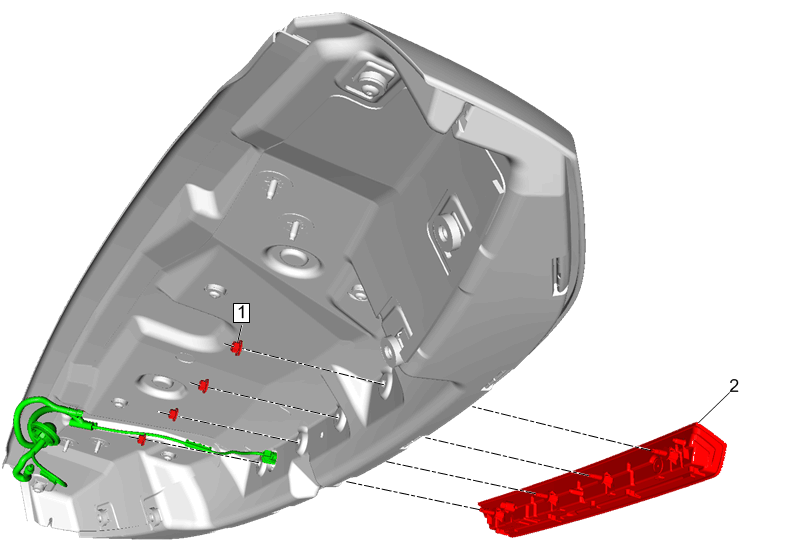

Fig 1: High Mount Stop Lamp

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove Rear End Spoiler Retainer Cover. Refer to Rear End Spoiler Retainer Cover Replacement (Rear End Spoiler)Rear End Spoiler Retainer Cover Replacement (Liftgate)
1	High Mount Stop Lamp Nut (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 2 N.m (18 lb in)
2	High Mount Stop Lamp Procedure Disconnect the electrical connector. Transfer components as necessary. NOTE: The high mount stop lamp is (LED) light emitting diode and is replaced as an assembly.

Callout

Component Name

High Mount Stop Lamp Nut (Qty: 4)

CAUTION:

Tighten
2 N.m (18 lb in)

High Mount Stop Lamp

Procedure

NOTE:

The high mount stop lamp is (LED) light emitting diode and is replaced as an assembly.
