Rear End Spoiler Retainer Cover Replacement (Rear End Spoiler)

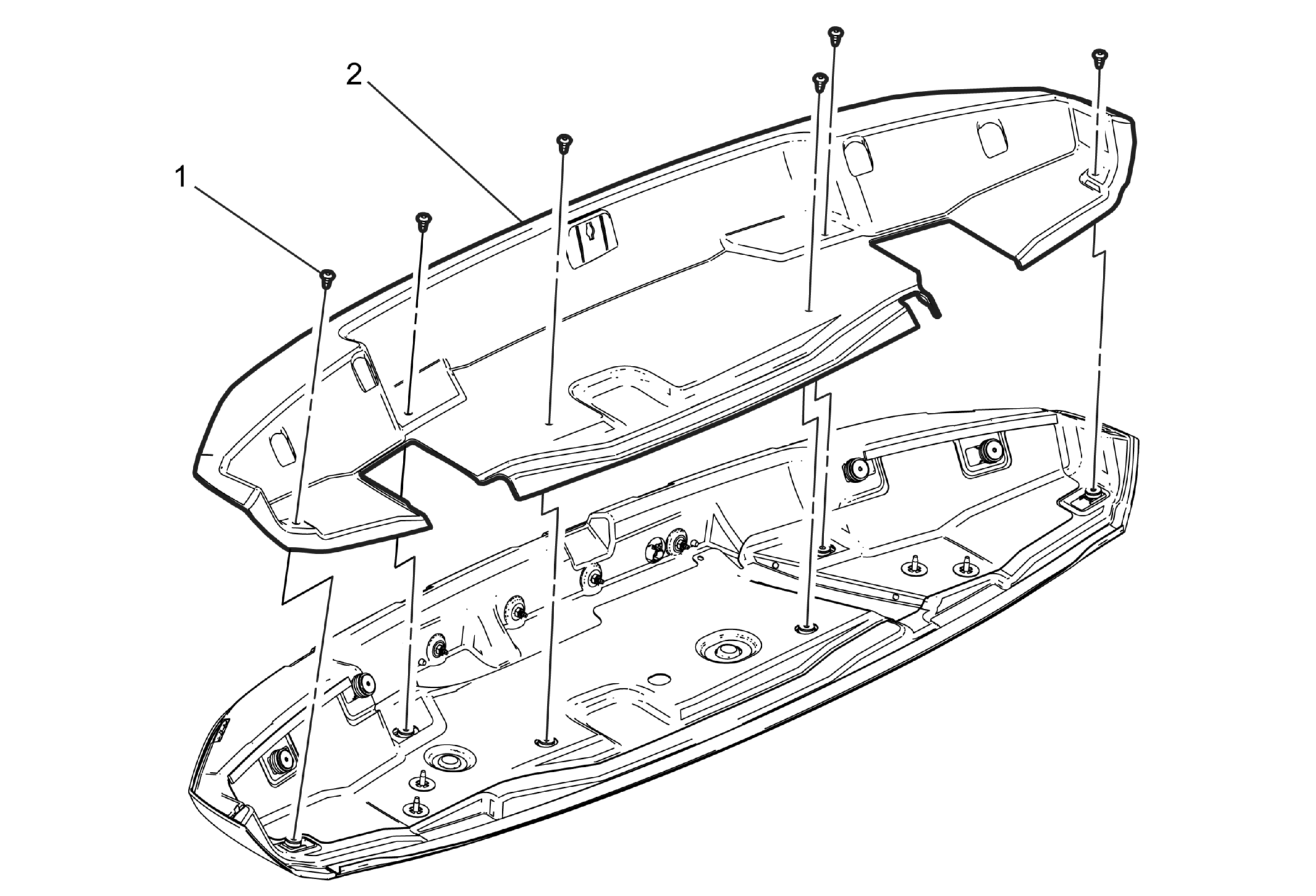

Fig 1: Rear End Spoiler Retainer Cover (Rear End Spoiler)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove rear end spoiler. Refer to Rear End Spoiler Replacement .
1	Rear End Spoiler Retainer Cover Bolt (Qty: 6) CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Rear End Spoiler Retainer Cover Procedure Disconnect the rear window washer nozzle hose. Transfer the rear window washer nozzle.

Callout

Component Name

Preliminary Procedure
Remove rear end spoiler. Refer to Rear End Spoiler Replacement .

Rear End Spoiler Retainer Cover Bolt (Qty: 6)

CAUTION:

Tighten
2.5 N.m (22 lb in)

Rear End Spoiler Retainer Cover

Procedure
