Front Side Turn Signal Lamp Replacement

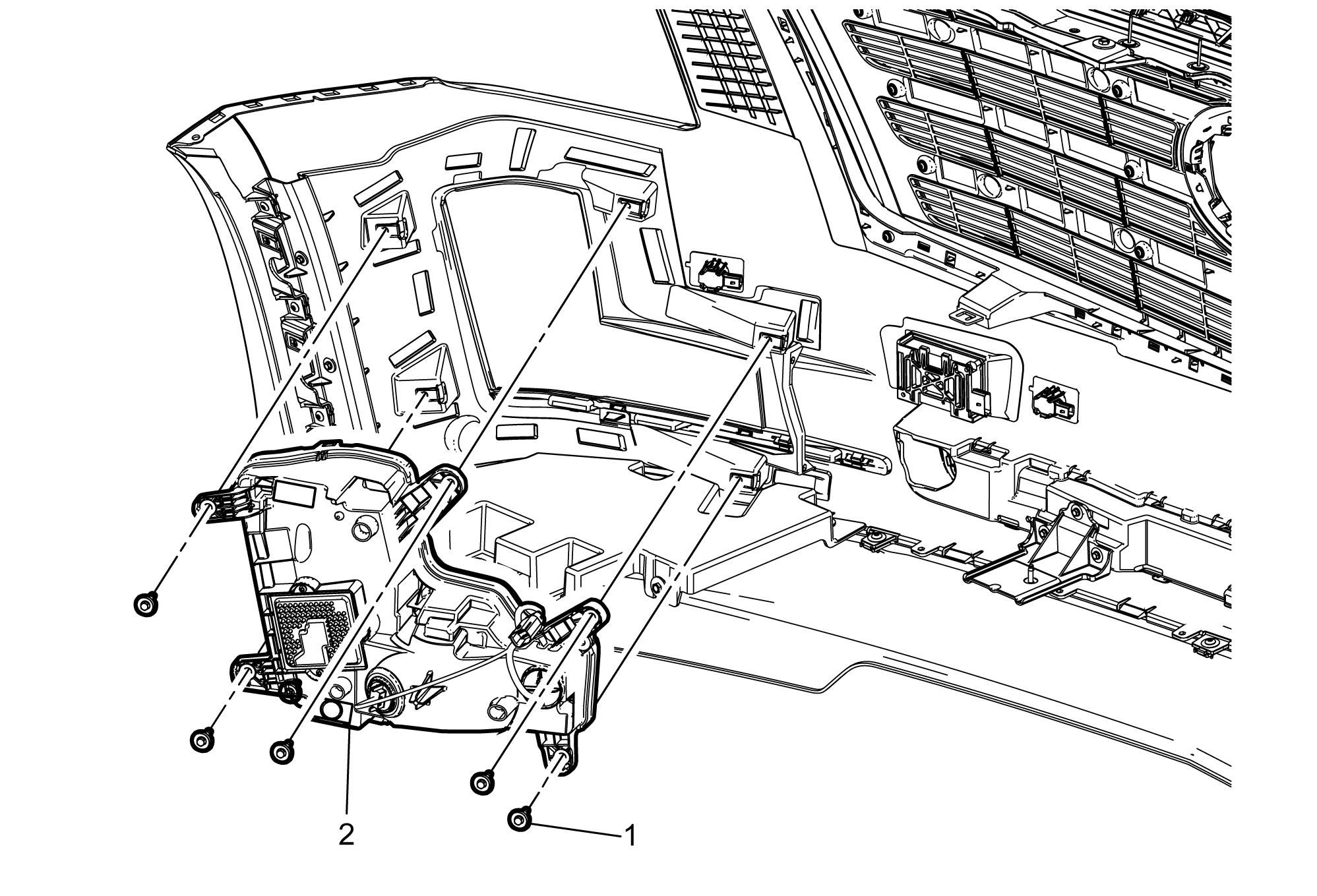

Fig 1: Front Side Turn Signal Lamp

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the auxiliary side front turn signal bulb replacement. Refer to Auxiliary Side Front Turn Signal Lamp Bulb Replacement (Left Side) Auxiliary Side Front Turn Signal Lamp Bulb Replacement (Right Side) . Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement (GMC)Front Bumper Fascia Replacement (Chevrolet)Front Bumper Fascia Replacement (Cadillac) .
1	Front Side Turn Signal Lamp Bolt (Qty: 5) CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Front Side Turn Signal Lamp Procedure Disconnect the electrical connector.

Callout

Component Name

Preliminary Procedures

Front Side Turn Signal Lamp Bolt (Qty: 5)

CAUTION:

Tighten
2.5 N.m (22 lb in)

Front Side Turn Signal Lamp
Procedure
Disconnect the electrical connector.
