Auxiliary Side Front Turn Signal Lamp Bulb Replacement (Right Side)

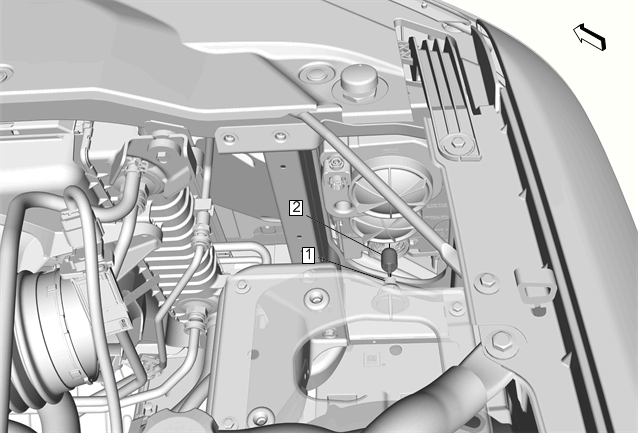

Fig 1: Auxiliary Side Front Turn Signal Lamp Bulb (Right Side)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove Air Cleaner Assembly. Refer to Air Cleaner Assembly Replacement Remove Radiator Air Upper Baffle and Deflector. Refer to Radiator Air Upper Baffle and Deflector Replacement (Top of Radiator L83 L86)Radiator Air Upper Baffle and Deflector Replacement (Right of Radiator L83 L86)
1	Auxiliary Side Front Turn Signal Lamp Socket Procedure Rotate the bulb socket counterclockwise and pull from the headlamp.
2	Auxiliary Side Front Turn Signal Lamp Bulb - Right Side Procedure Pull the bulb straight out from the socket.

Callout

Component Name

Preliminary Procedures

Auxiliary Side Front Turn Signal Lamp Socket
Procedure
Rotate the bulb socket counterclockwise and pull from the headlamp.

Auxiliary Side Front Turn Signal Lamp Bulb - Right Side
Procedure
Pull the bulb straight out from the socket.
