Stabilizer Shaft Replacement (Heavy Duty)

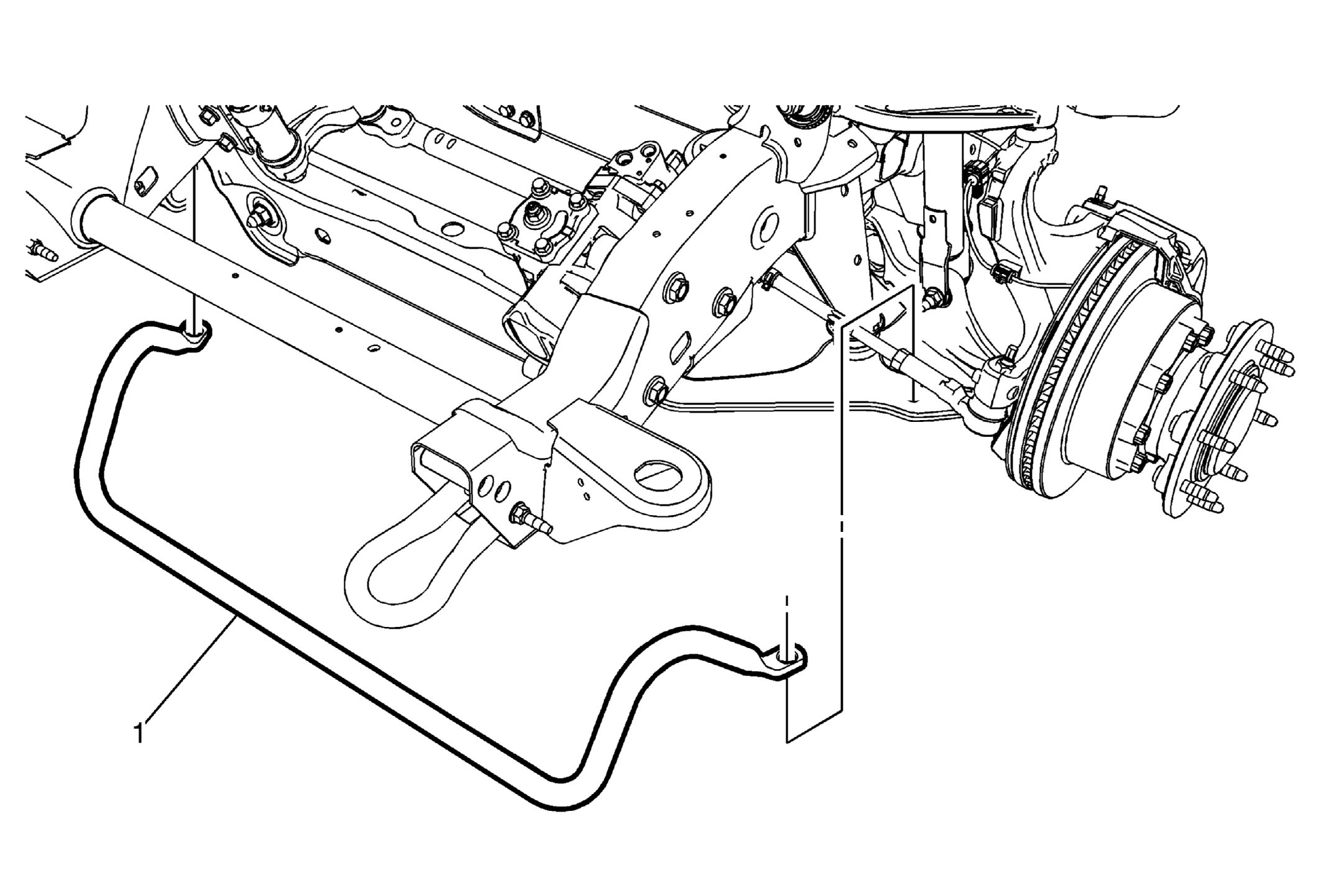

Fig 1: View Of Stabilizer Shaft (2500, 3500)
GM2404199Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Steering Gear Skid Shield Replacement
  2. Stabilizer Shaft Link Replacement (Heavy Duty)  [2x]
  3. Stabilizer Shaft Insulator Replacement (Heavy Duty) [2x]
1 Front Stabilizer Shaft
