Steering Column Tilt Wheel And Telescope Switch Replacement

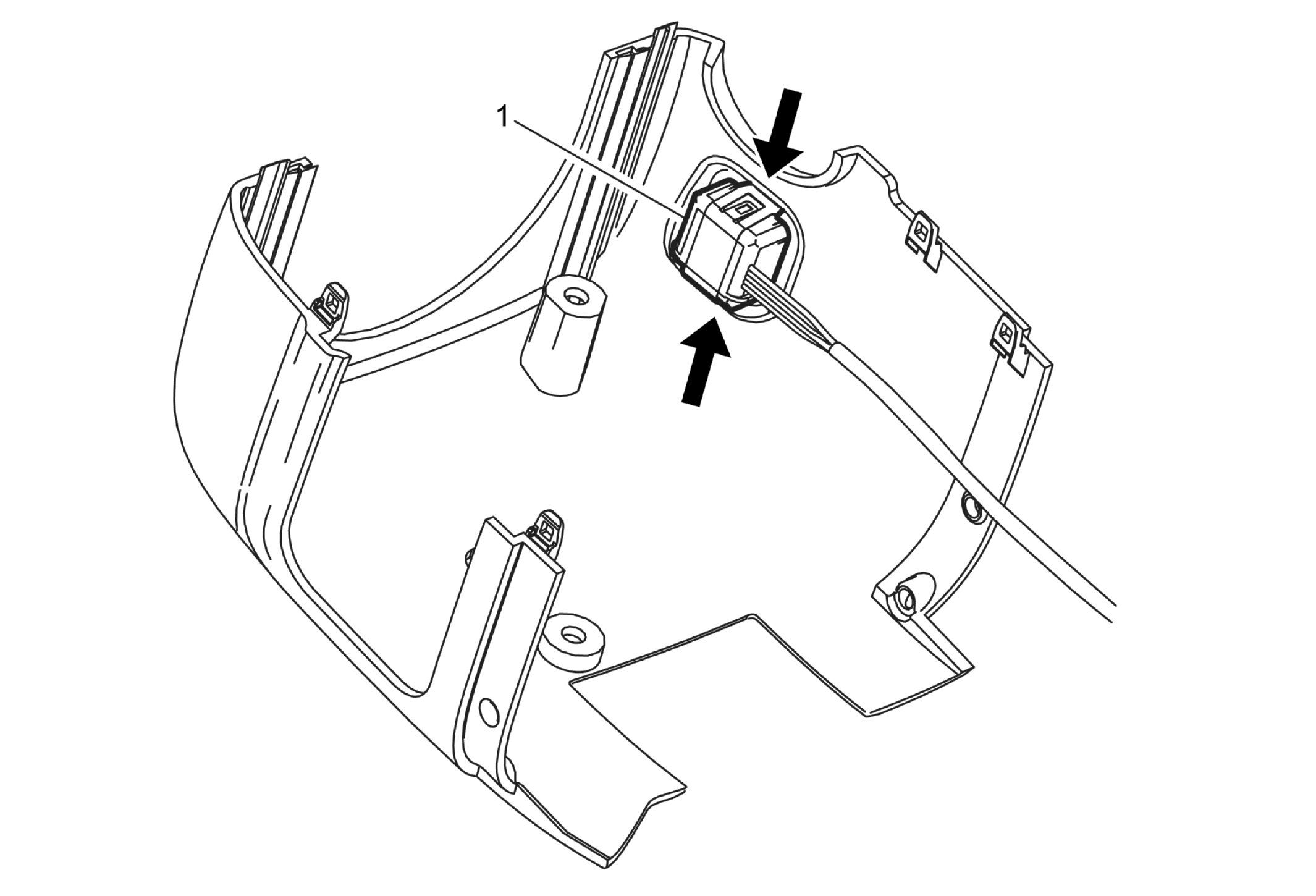

Fig 1: Steering Column Tilt Wheel and Telescope Switch
GM3636052Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Instrument Panel Knee Bolster Replacement (Chevrolet / GMC)Instrument Panel Knee Bolster Replacement (Cadillac)
  2. Lower the lower steering column shroud. Steering Column Shroud Replacement (RPO N37) Steering Column Shroud Replacement (RPO N38) Steering Column Shroud Replacement (RPO N33)
1 Steering Column Tilt Wheel and Telescope Switch

Procedure

  1. Disconnect the electrical connector.
  2. Release the retaining tabs and remove the steering column tilt wheel and telescope switch from the lower steering column shroud.
