Instrument Panel Knee Bolster Replacement (Chevrolet/GMC)

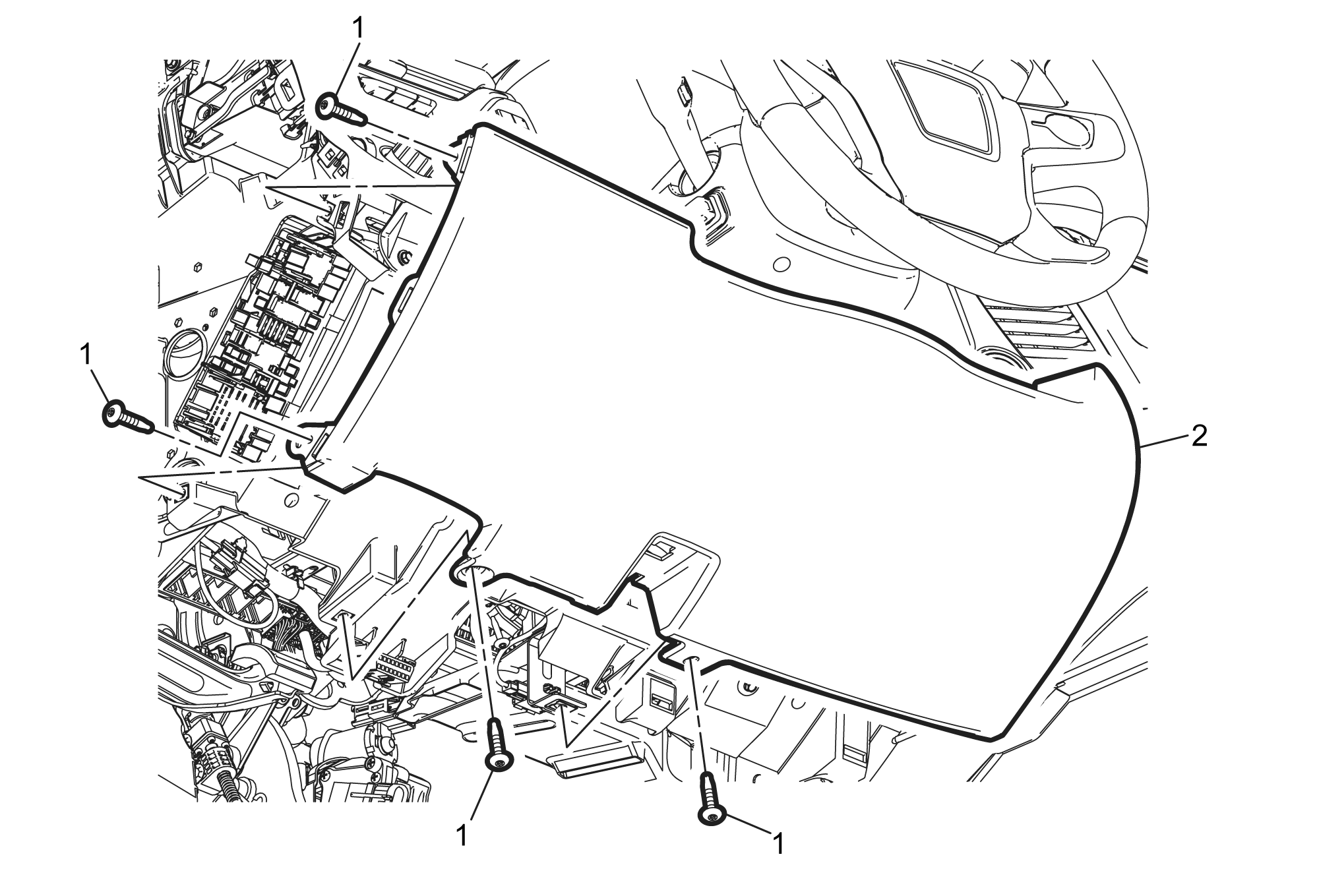

Fig 1: Instrument Panel Knee Bolster (Chevrolet/GMC)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the left instrument panel fuse block access hole cover. Refer to Instrument Panel Fuse Block Access Hole Cover Replacement (Chevrolet/GMC) .
1	Instrument Panel Knee Bolster Bolt (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Instrument Panel Knee Bolster Procedures Use a flat bladed plastic trim tool in order to release the retainer clips securing the knee bolster to the instrument panel carrier. Disconnect the hood release lever. Refer to Hood Primary Latch Release Cable Replacement .

Callout

Component Name

Preliminary Procedure
Remove the left instrument panel fuse block access hole cover. Refer to Instrument Panel Fuse Block Access Hole Cover Replacement (Chevrolet/GMC) .

Instrument Panel Knee Bolster Bolt (Qty: 4)

CAUTION:

Tighten
2.5 N.m (22 lb in)

Instrument Panel Knee Bolster

Procedures

Use a flat bladed plastic trim tool in order to release the retainer clips securing the knee bolster to the instrument panel carrier.
Disconnect the hood release lever. Refer to Hood Primary Latch Release Cable Replacement .
