Transmission Control Replacement

WARNING: This page is about a different car, the 2018 Chevrolet Suburban 3500 HD. However, it is still accessible from the selected car via links, so may be relevant.

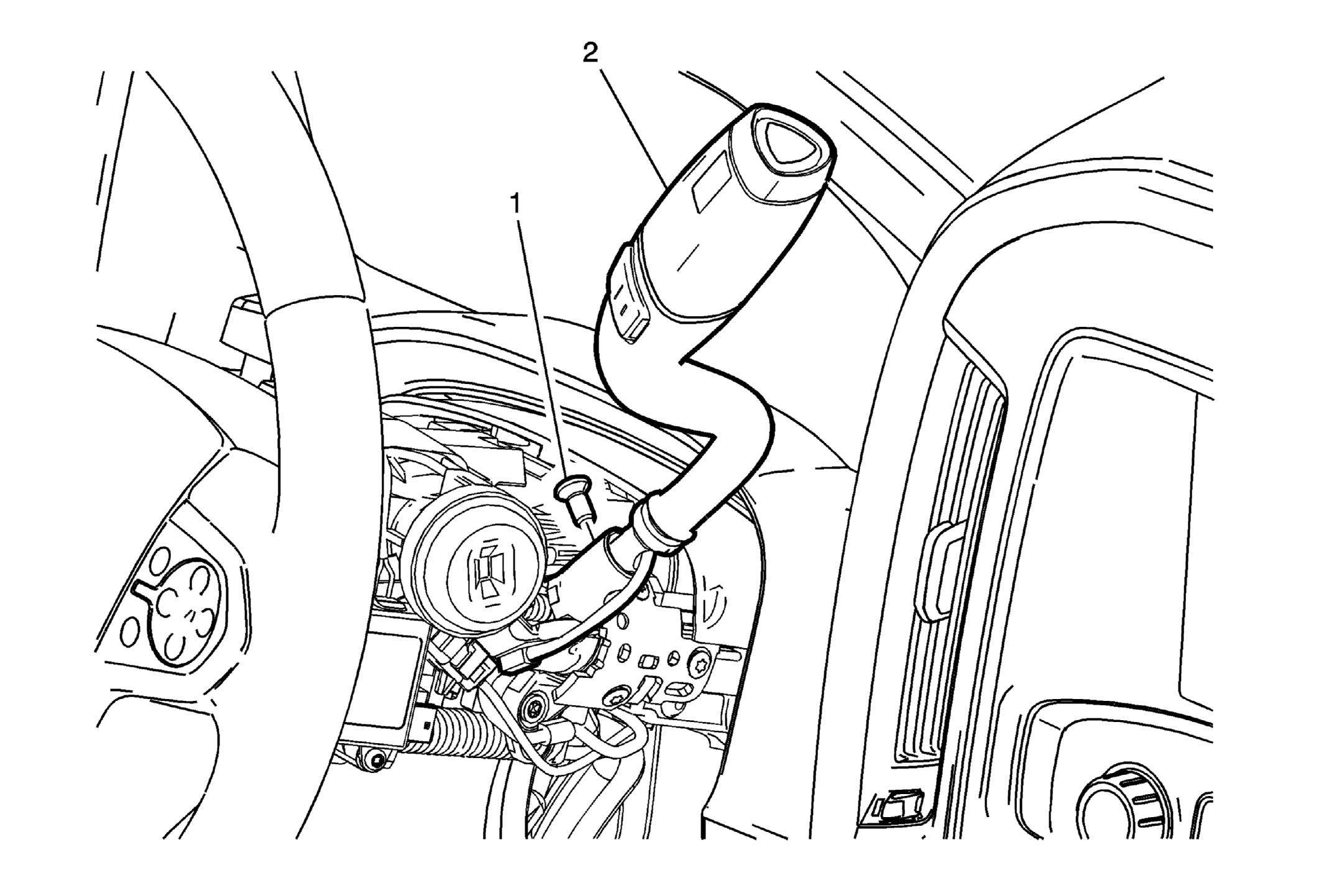

Fig 1: Automatic Transmission Range Selector Lever Cable Lever

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove Instrument Panel Knee Bolster. Refer to Instrument Panel Knee Bolster Replacement (Chevrolet/GMC)Instrument Panel Knee Bolster Replacement (Cadillac) Remove the steering column shroud and the steering column lower shroud closeout. Refer to Steering Column Shroud Replacement (RPO N37)Steering Column Shroud Replacement (RPO N38)Steering Column Shroud Replacement (RPO N33)
1	Automatic Transmission Range Selector Lever Cable Lever Bolt CAUTION: Refer to Fastener Caution . Procedure Move the automatic transmission control lever seal, as necessary, to access the automatic transmission range selector lever cable lever bolt. Tighten 20 N.m (15 lb ft)
2	Automatic Transmission Range Selector Lever Cable Lever Procedure Disconnect the electrical connector. Disconnect the automatic transmission range selector lever cable lever wiring harness from any mounting points. Transfer components as necessary. NOTE: Note the routing of the automatic transmission range selector lever cable lever wiring harness before removing the cable lever. When installing the automatic transmission range selector lever cable lever, ensure the wiring harness is installed in the same routing and mounting positions as noted before removal.

Callout

Component Name

Preliminary Procedures

Remove Instrument Panel Knee Bolster. Refer to Instrument Panel Knee Bolster Replacement (Chevrolet/GMC)Instrument Panel Knee Bolster Replacement (Cadillac)
Remove the steering column shroud and the steering column lower shroud closeout. Refer to Steering Column Shroud Replacement (RPO N37)Steering Column Shroud Replacement (RPO N38)Steering Column Shroud Replacement (RPO N33)

Automatic Transmission Range Selector Lever Cable Lever Bolt

CAUTION:

Refer to Fastener Caution .

Procedure
Move the automatic transmission control lever seal, as necessary, to access the automatic transmission range selector lever cable lever bolt.
Tighten
20 N.m (15 lb ft)

Automatic Transmission Range Selector Lever Cable Lever

Procedure

Disconnect the electrical connector.
Disconnect the automatic transmission range selector lever cable lever wiring harness from any mounting points.
Transfer components as necessary.

NOTE:

Note the routing of the automatic transmission range selector lever cable lever wiring harness before removing the cable lever.
When installing the automatic transmission range selector lever cable lever, ensure the wiring harness is installed in the same routing and mounting positions as noted before removal.
