Installation Procedure

WARNING: This page is about a different car, the 2018 GMC Yukon XL, 2018 GMC Yukon, 2018 Chevrolet Tahoe, 2018 Chevrolet Suburban 3500 HD, and 2018 Chevrolet Suburban. However, it is still accessible from the selected car via links, so may be relevant.

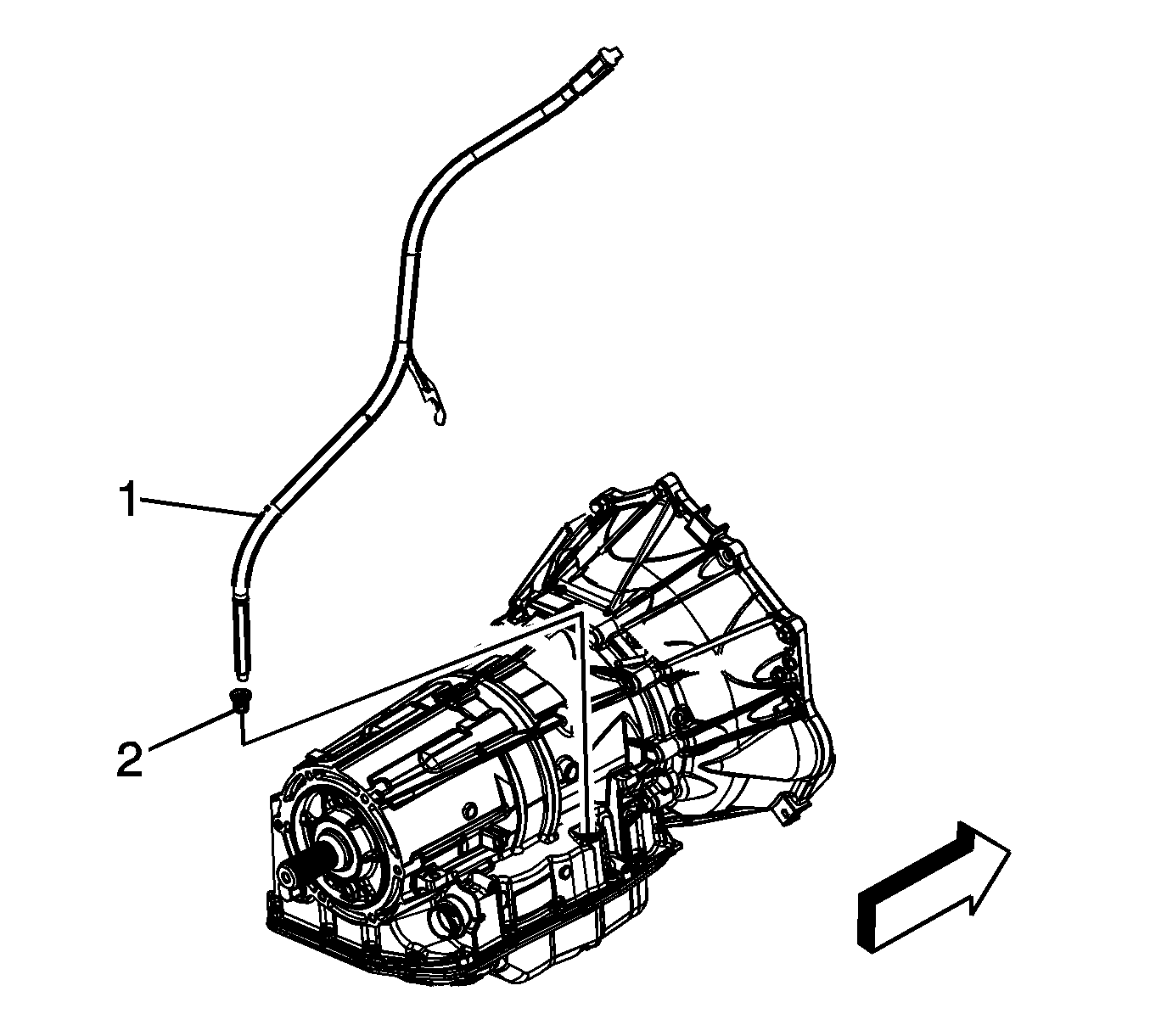

    Fig 1: Oil Level Indicator Tube And Seal
    GM1869804Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Lightly oil the seal to aid in the installation into the transmission case.

  1. Install a seal (2) to the indicator tube (1).
  2. Install the oil level indicator tube (1) and seal (2) assembly.
  3. Lower rear of transmission to allow for clearance to install transmission oil level indicator tube into the transmission.
  4. Seat the oil level indicator tube seal into the transmission, then seat the oil level indicator tube.
    5. CAUTION:

    Refer to Fastener Caution .

  5. While holding the oil level indicator tube down into the transmission, Install transmission oil level indicator tube bracket nut. Tighten the nut to 22 N.m (16 lb ft).
  6. Install the exhaust heat shield to the transmission. Refer to Transmission Heat Shield Replacement .
  7. Raise rear of transmission to install transmission crossmember.
  8. Install the transmission crossmember. Refer to Transmission Support Crossmember Replacement (2WD)Transmission Support Crossmember Replacement (4WD) .
  9. Remove the jack.
  10. Lower the vehicle.
    11. Fig 2: Transmission Oil Level Indicator
    GM1284301Courtesy of GENERAL MOTORS COMPANY
  11. Install the transmission oil level indicator.
  12. Lock the transmission oil level indicator.
