Installation Procedure

WARNING: This page is about a different car, the 2018 Chevrolet Suburban 3500 HD. However, it is still accessible from the selected car via links, so may be relevant.

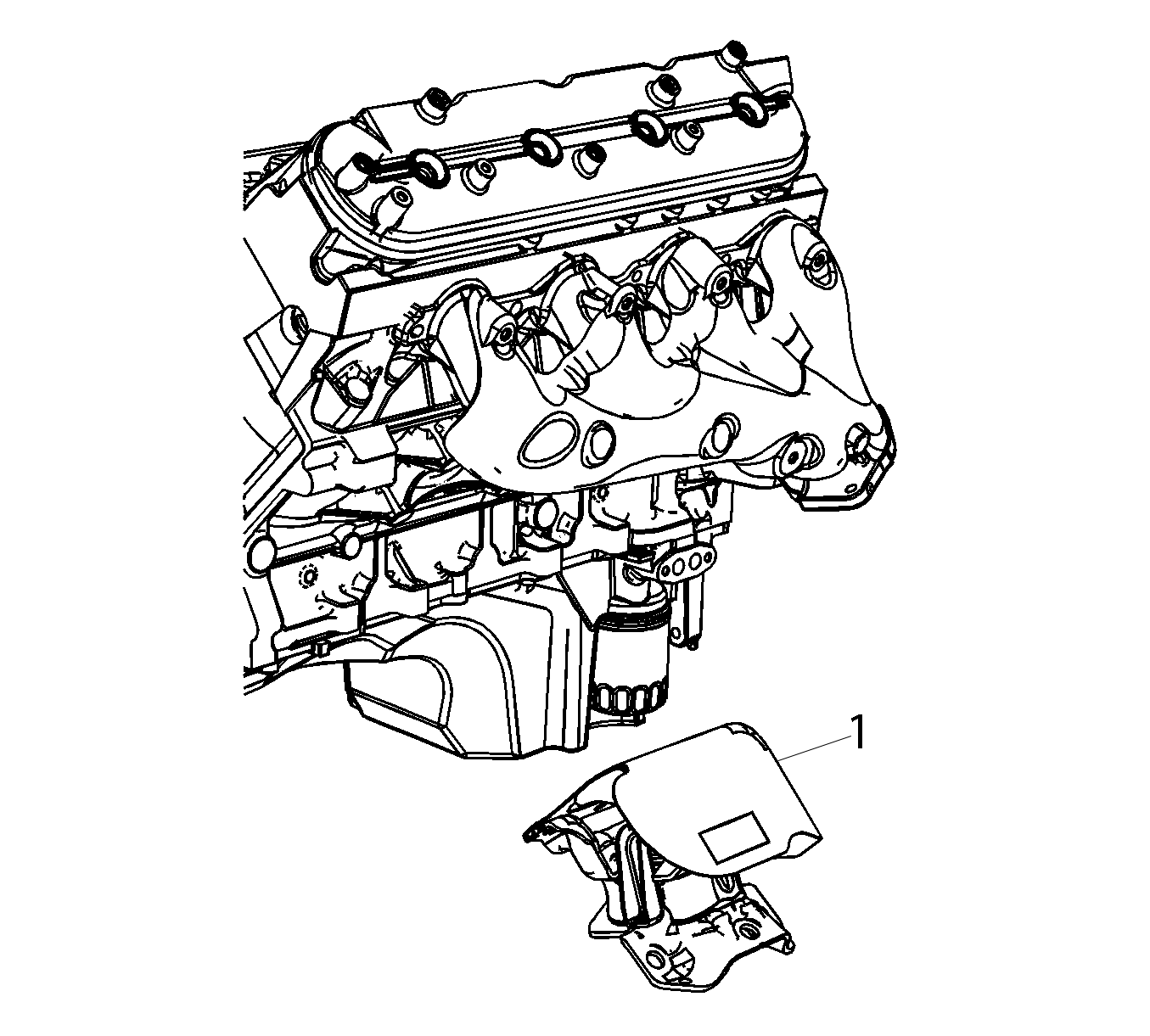

    Fig 1: Engine Mount
    GM4328743Courtesy of GENERAL MOTORS COMPANY
  1. Install Engine Mount (1)
    2. Fig 2: Engine Mount To Engine Bolts - Left Side
    GM1701533Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  2. Install Engine Mount Bolts (1) (Qty: 4)
  3. Tighten Engine Mount Bolts (1) (Qty: 4) to 50 N.m (37 lb ft)
  4. Using the adjustable jack, lower the engine until the engine mount is sitting flush on the frame.
  5. Remove the adjustable jack and block of wood from the engine oil pan.
  6. Install Underbody Skid Shield. Refer to Underbody Skid Shield Replacement
  7. Install Exhaust Manifold Heat Shield-Left Side. Refer to Exhaust Manifold Heat Shield Replacement - Left Side (L96)
  8. Install Intermediate Steering Shaft. Refer to Intermediate Steering Shaft Replacement
  9. Partially lower the vehicle.
    10. Fig 3: Engine Mount And Bolts - Left Side
    GM1701017Courtesy of GENERAL MOTORS COMPANY
  10. Install Engine Mount Bolts (1) (Qty: 3)
  11. Tighten Engine Mount Bolts (1) (Qty: 3) to 65 N.m (48 lb ft)
  12. Install Front Wheelhouse Liner-Left Side. Refer to Front Wheelhouse Liner Replacement - Left Side (GMC)Front Wheelhouse Liner Replacement - Left Side (Chevrolet)
  13. Lower the vehicle.
  14. Install Upper Intake Manifold Sight Shield. Refer to Upper Intake Manifold Sight Shield Replacement
