Radiator Surge Tank Replacement (L96)

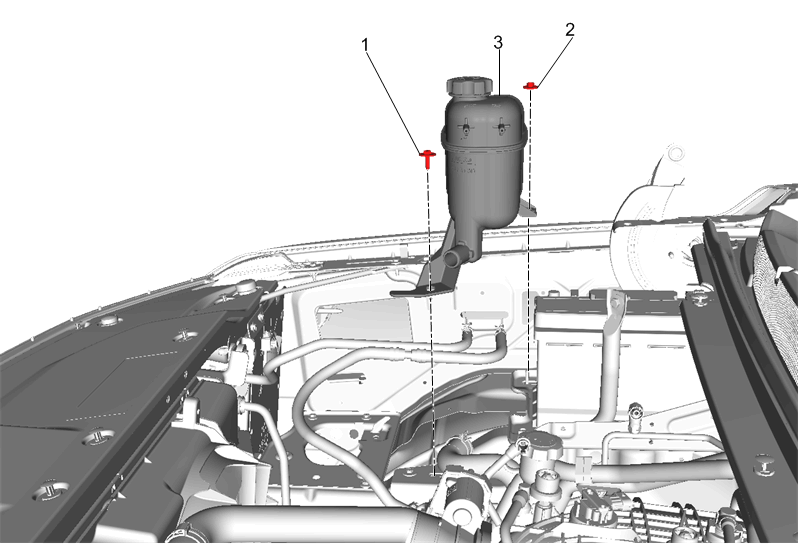

Fig 1: Radiator Surge Tank
GM4280905Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Remove Radiator Surge Tank Inlet Hose @ Radiator Surge Tank -Radiator Surge Tank Inlet Hose Replacement (L96)
  2. Remove Radiator Surge Tank Overflow Hose @ Radiator Surge Tank -Radiator Surge Tank Overflow Hose Replacement (L96)
  3. Remove Radiator Surge Tank Outlet Hose @ Radiator Surge Tank - Radiator Surge Tank Outlet Hose Replacement (L96)
1 Surge Tank Bolt
CAUTION:

Refer to Fastener Caution .


Tighten
10 N.m (89 lb in)
2 Surge Tank Nut
Tighten
10 N.m (89 lb in)
3 Surge Tank

Procedures

  1. Fill the cooling system to the proper level.
  2. Inspect the cooing system for leaks.
