Radiator Surge Tank Inlet Hose Replacement (L96)

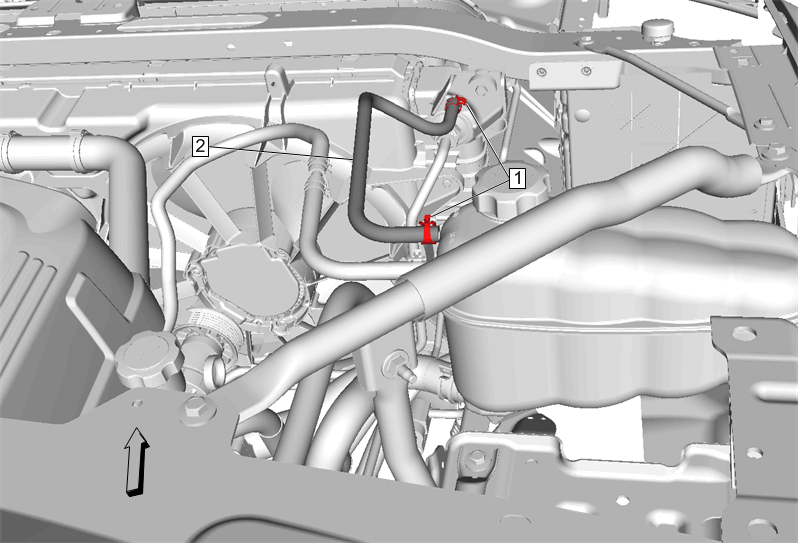

Fig 1: Radiator Surge Tank Inlet Hose

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Drain the cooling system. Cooling System Draining and Filling (Static Fill L96) Cooling System Draining and Filling (Vac N Fill L96)
1	Radiator Surge Tank Inlet Hose Clamp Procedure Disengage tension on the radiator surge tank inlet hose clamps using BO-38185 hose clamp pliers and remove the radiator surge tank inlet hose and clamps. Special Tools BO-38185 Hose Clamp Pliers For equivalent regional tools, refer to Special Tools .
2	Radiator Surge Tank Inlet Hose Procedures Fill the engine cooling system to the proper level. Cooling System Draining and Filling (Static Fill L96) Cooling System Draining and Filling (Vac N Fill L96) Inspect the cooling system for leaks. Cooling System Leak Testing (L96) Install the air cleaner assembly. Air Cleaner Assembly Replacement

Callout

Component Name

Preliminary Procedure
Drain the cooling system. Cooling System Draining and Filling (Static Fill L96) Cooling System Draining and Filling (Vac N Fill L96)

Radiator Surge Tank Inlet Hose Clamp
Procedure
Disengage tension on the radiator surge tank inlet hose clamps using BO-38185 hose clamp pliers and remove the radiator surge tank inlet hose and clamps.
Special Tools
BO-38185 Hose Clamp Pliers
For equivalent regional tools, refer to Special Tools .

Radiator Surge Tank Inlet Hose

Procedures

Fill the engine cooling system to the proper level. Cooling System Draining and Filling (Static Fill L96) Cooling System Draining and Filling (Vac N Fill L96)
Inspect the cooling system for leaks. Cooling System Leak Testing (L96)
Install the air cleaner assembly. Air Cleaner Assembly Replacement
