Preliminary Procedure
- Drain the cooling system. Cooling System Draining and Filling (Static Fill L96) .
- Intake Manifold Cover Replacement
- Air Cleaner Resonator Outlet Duct Replacement
|
| 1 |

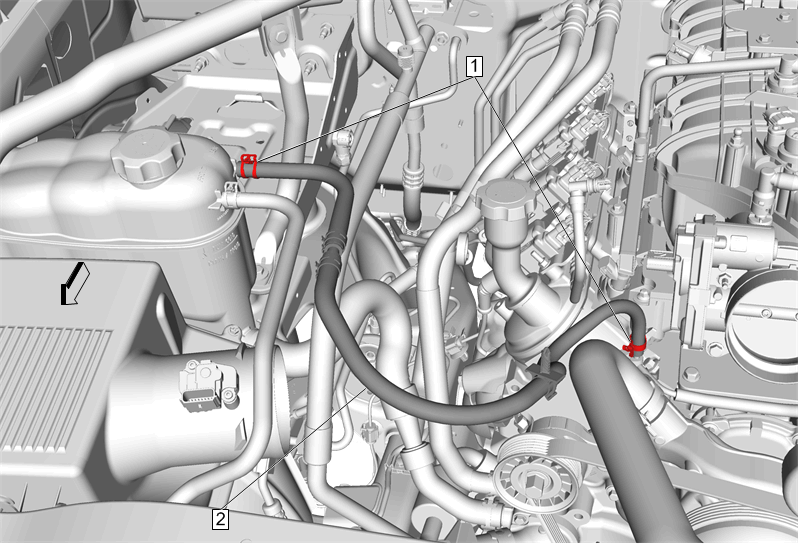

Radiator Surge Tank Overflow Hose Clamp [2x]
Procedure
Hose Clamp Replacement Guidelines - Spring Type |
| 2 |
Radiator Surge Tank Overflow Hose Procedures
- Fill the engine cooling system to the proper level. Cooling System Draining and Filling (Static Fill L96) Cooling System Draining and Filling (Vac N Fill L96)
- Inspect the cooling system for leaks. Cooling System Leak Testing (L96)
|
