Exterior Lamp Control Module Replacement (Multifunction LED)

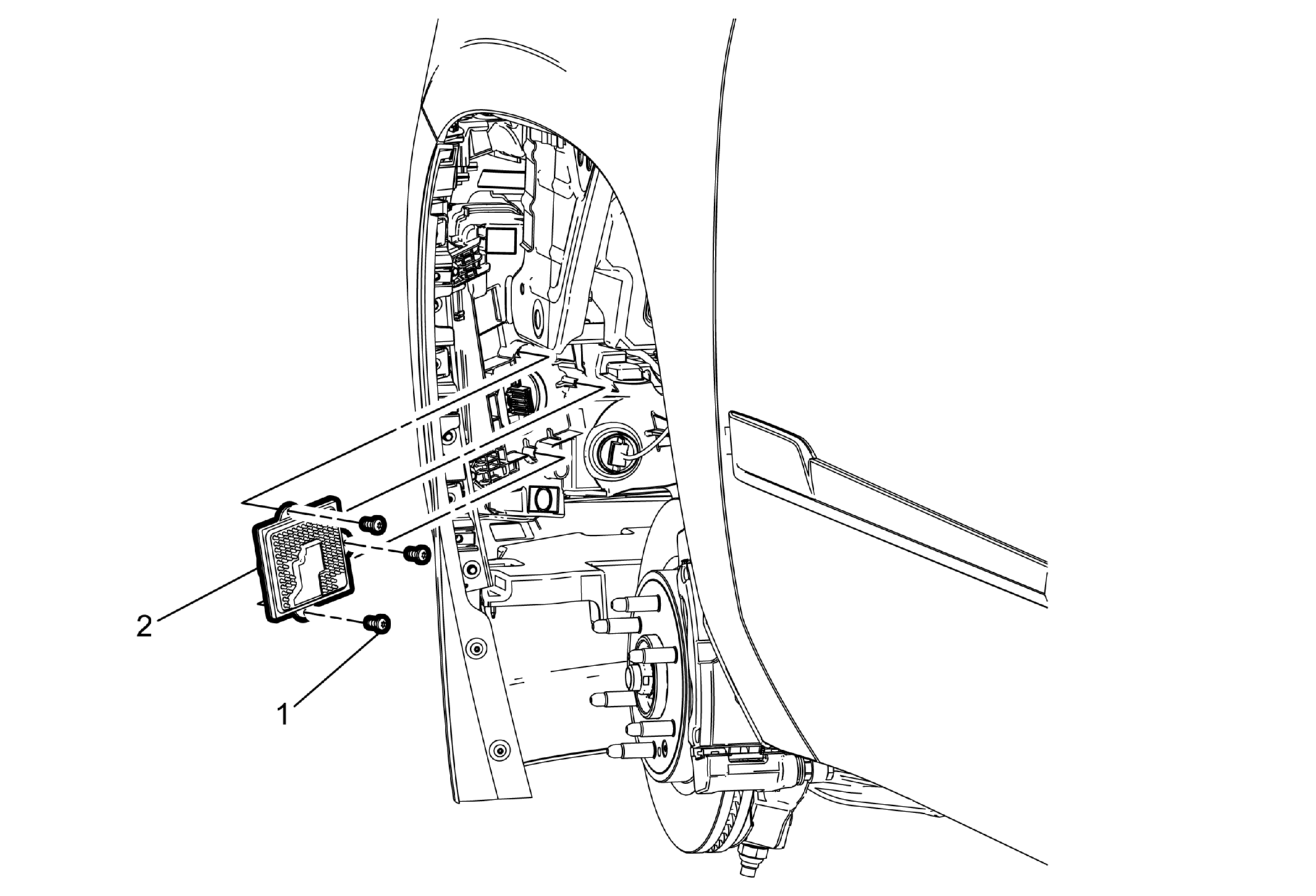

Fig 1: Exterior Lamp Control Module (Multifunction LED)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure If working on the left side, reposition the front wheelhouse liner-left side. Refer to Front Wheelhouse Liner Replacement - Left Side (Cadillac)Front Wheelhouse Liner Replacement - Left Side (GMC)Front Wheelhouse Liner Replacement - Left Side (Chevrolet) . If working on the right side, reposition the front wheelhouse liner-right side. Refer to Front Wheelhouse Liner Replacement - Right Side (Cadillac)Front Wheelhouse Liner Replacement - Right Side (Chevrolet)Front Wheelhouse Liner Replacement - Right Side (GMC) .
1	Exterior Lamp Control Module Bolt (Qty: 3) CAUTION: Refer to Fastener Caution .
2	Exterior Lamp Control Module Procedure Pull the headlamp automatic control module straight out and disconnect the electrical connector to remove.

Callout

Component Name

Preliminary Procedure

Exterior Lamp Control Module Bolt (Qty: 3)

CAUTION:

Exterior Lamp Control Module
Procedure
Pull the headlamp automatic control module straight out and disconnect the electrical connector to remove.
