Front Wheelhouse Liner Replacement - Right Side (Cadillac)

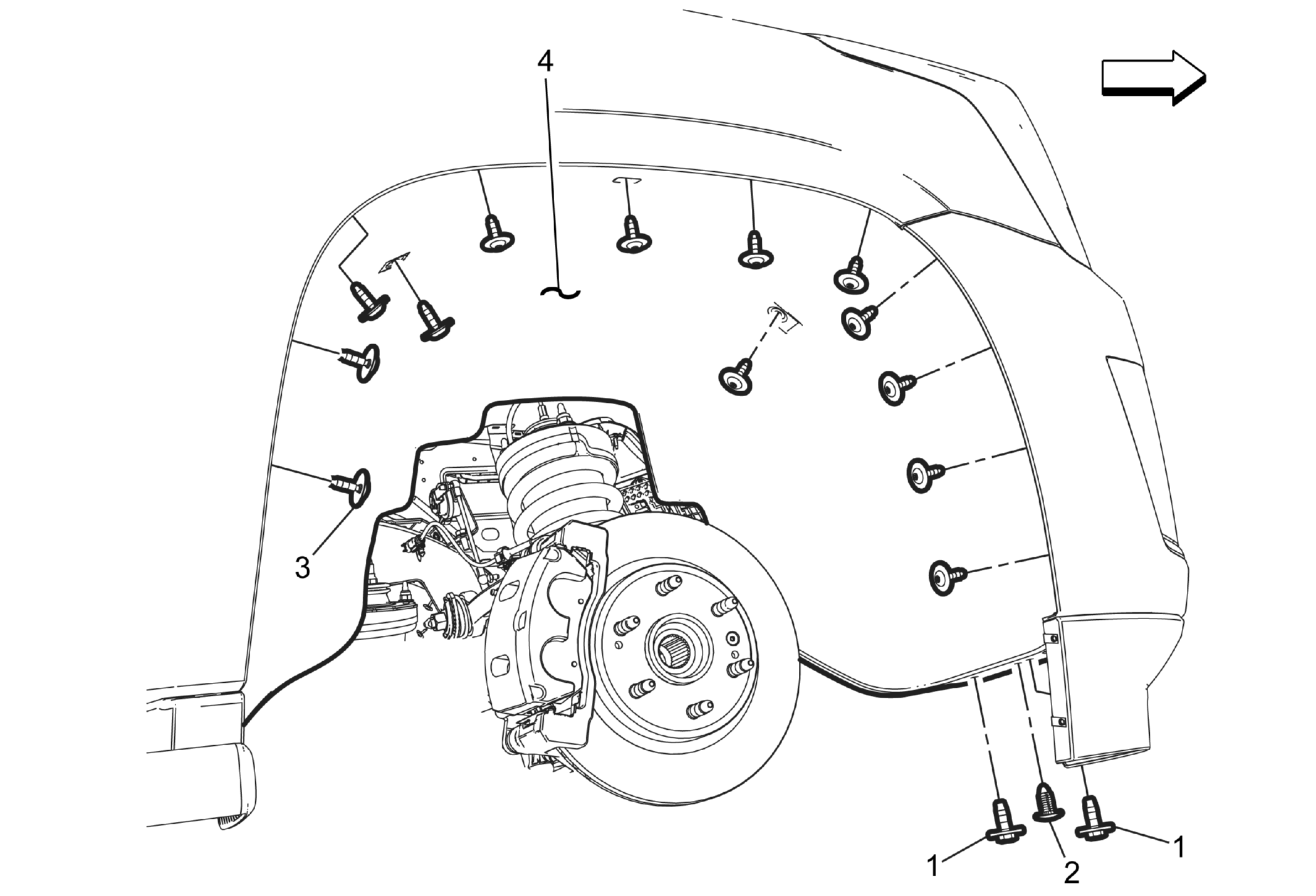

Fig 1: Front Wheelhouse Liner - Right Side (Cadillac)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation (6-Lug Wheel)Tire and Wheel Removal and Installation (8-Lug Wheel) . Remove the front fender paint protector. Refer to Front Fender Paint Protector Replacement . Remove the front wheel opening rear molding, if equipped. Refer to Front Wheel Opening Rear Molding Replacement Remove the front wheel opening front molding, if equipped. Refer to Front Wheel Opening Front Molding Replacement
1	Front Wheelhouse Liner Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 7 N.m (62 lb in)
2	Front Wheelhouse Liner Plastic Retainer
3	Front Wheelhouse Liner Fasteners (Qty: 13) Tighten 2.5 N.m (22 lb in)
4	Front Wheelhouse Liner - Right NOTE: Disconnect any electrical harnesses/connectors and attached parts from the right side front wheelhouse liner as needed.
