Auxiliary Radiator Outlet Hose Replacement (LF3)

Courtesy of GENERAL MOTORS COMPANY

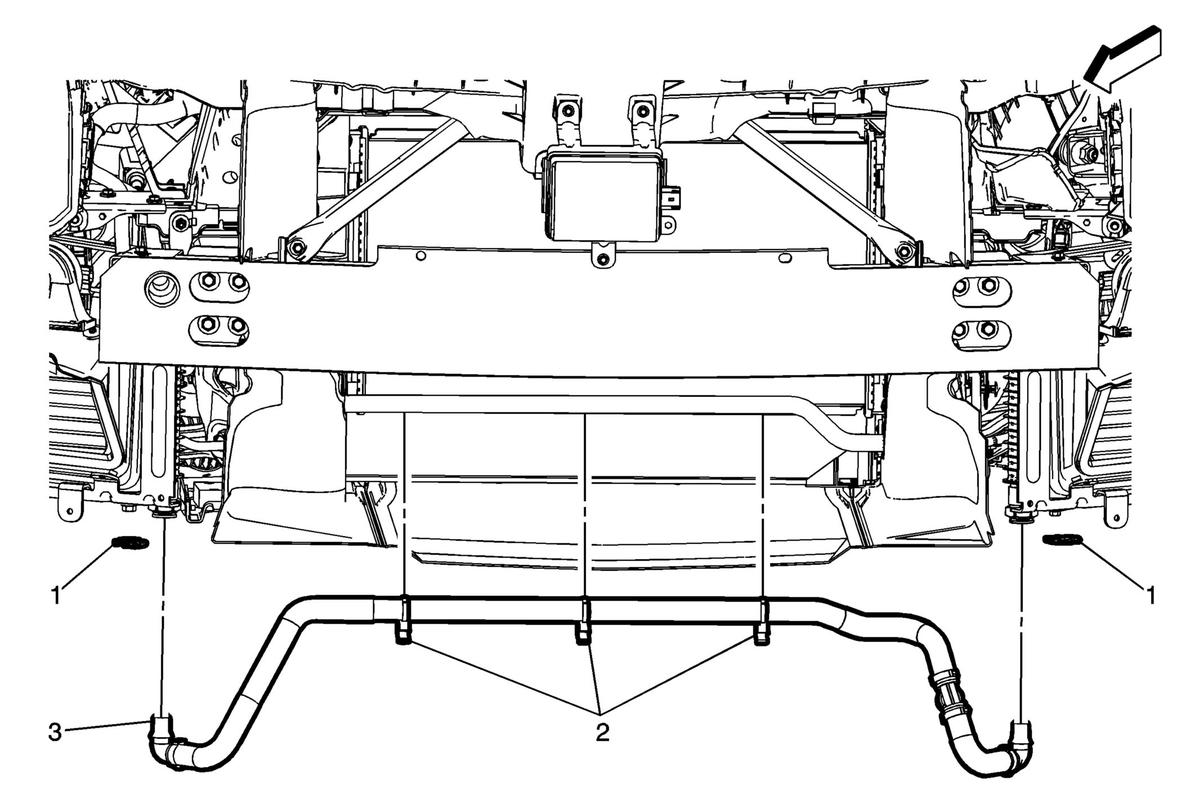

Callout	Component Name
Preliminary Procedures Remove the radiator air lower baffle and deflector. Radiator Air Lower Baffle and Deflector Replacement (LF3) Drain the charge air cooling system. Charge Air Cooling System Draining and Filling (LF3)
1	Auxiliary Radiator Outlet Hose Retaining Clips (Qty: 2)
2	Auxiliary Radiator Outlet Pipe Retainer (Qty: 3) Procedure Unclip the auxiliary radiator outlet hose retainers from the charge air cooler coolant pipe.
3	Auxiliary Radiator Outlet Hose Procedure Fill the charge air cooling system. Charge Air Cooling System Draining and Filling (LF3) Check the charge air cooling system for leaks.
