Rear Compartment Side Trim Replacement - Right Side

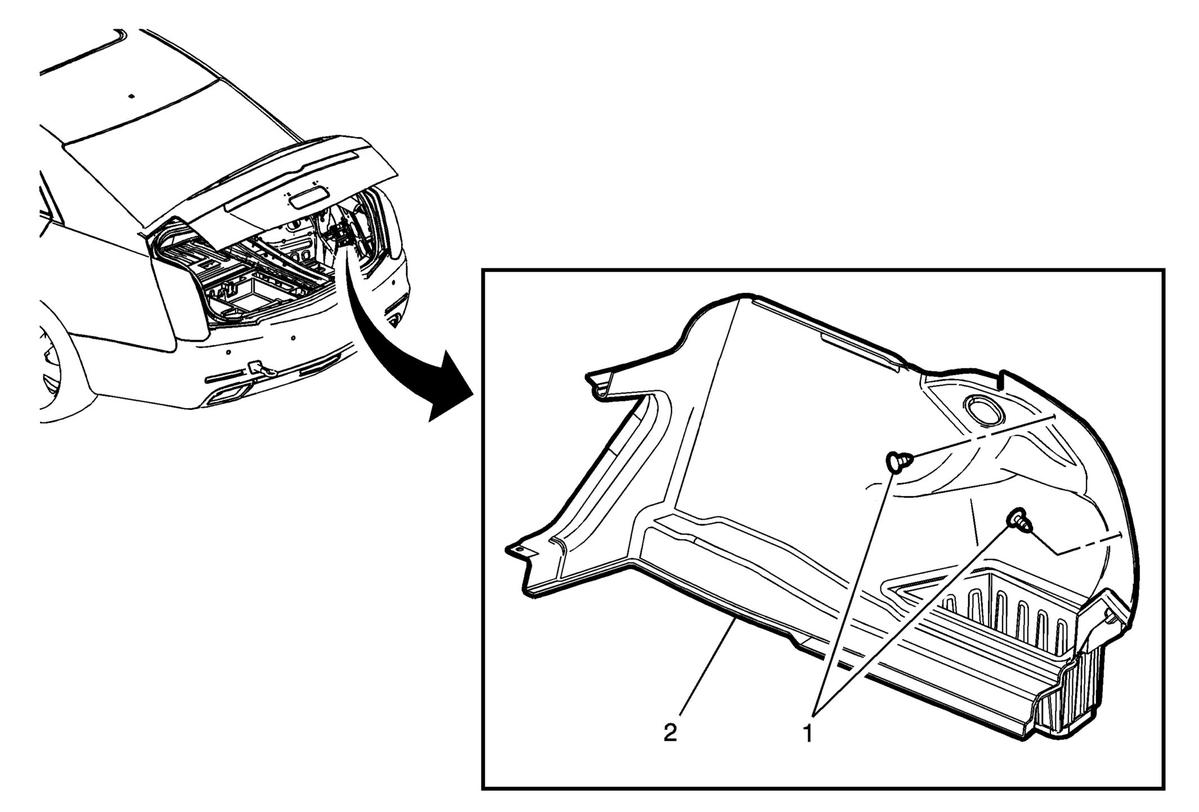

GM3471423
Callout Component Name

Preliminary Procedures

  1. Remove the rear end trim finish panel. Refer to Rear End Trim Finish Panel Replacement .
  2. Remove the rear compartment rear window lower trim. Refer to Rear Compartment Rear Window Lower Trim Replacement .
  3. Remove the rear compartment floor panel trim. Refer to Rear Compartment Floor Panel Trim Replacement .
  4. Fold down rear seat to access retainers.
1 Rear Compartment Side Trim Retainer (Qty: 2)
2 Rear Compartment Side Trim Assembly - Right Side

Procedures

  1. Disconnect electrical connector.
  2. Transfer parts as necessary.
