Rear Compartment Rear Window Lower Trim Replacement

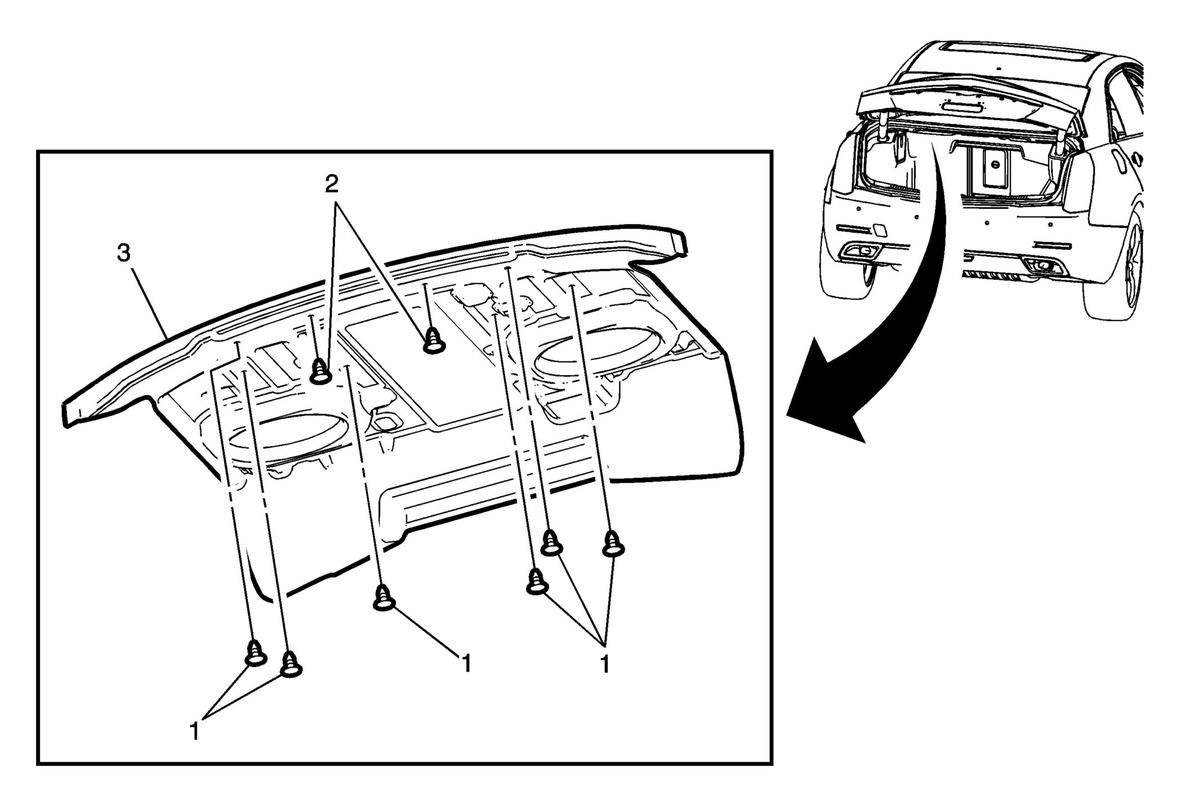

GM3448593
Callout Component Name
1 Rear Compartment Rear Window Lower Trim Retainer (Qty: 6)

Procedure

  1. Open the rear compartment lid to access retainers.
  2. Use a trim removal tool to aid in the removal of the retainers.
2 Radio Rear Speaker Grille Retainer (Qty: 2)

Procedure

  1. Use a trim removal tool to aid in the removal of the retainers.
  2. Disconnect the electrical connectors, if equipped.
3 Rear Compartment Rear Window Lower Trim Assembly
