Rear Compartment Floor Panel Trim Replacement

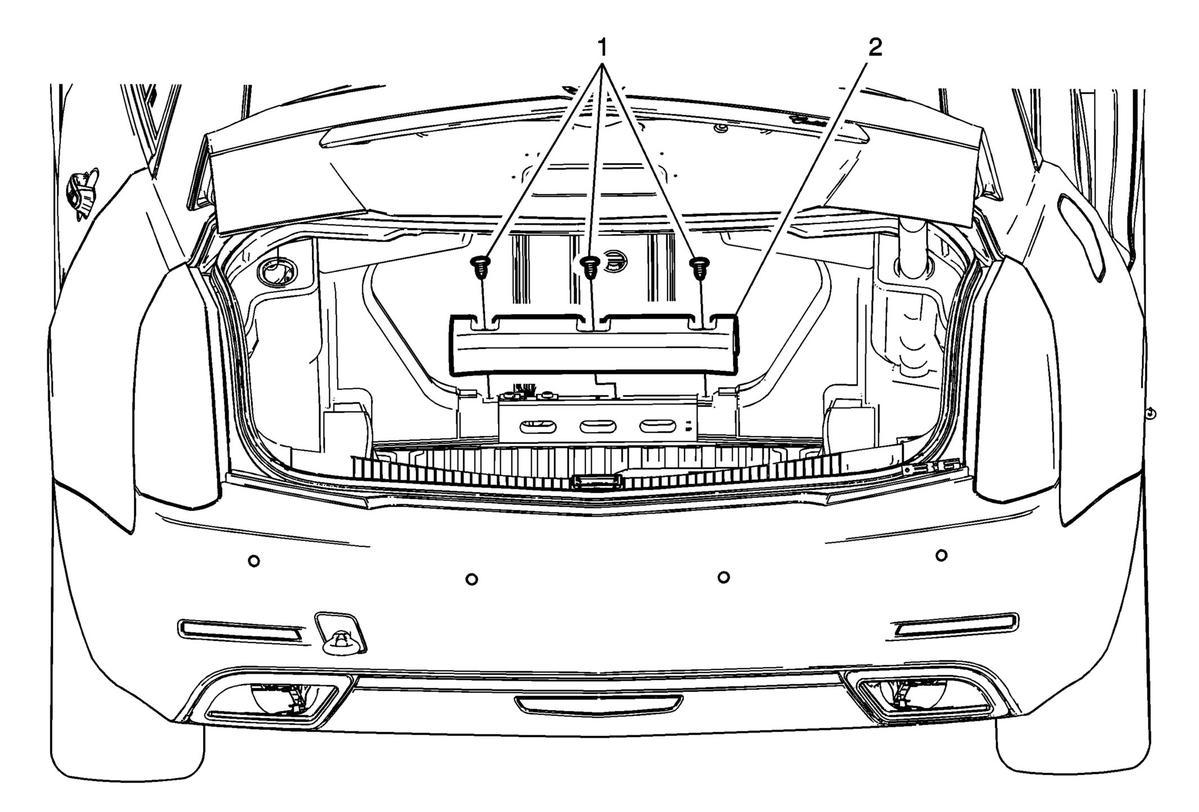

Callout	Component Name
Preliminary Procedure Remove the rear compartment floor panel carpet. Refer to Rear Compartment Floor Panel Carpet Replacement .
1	Rear Compartment Floor Panel Trim Retainer (Qty: 3) Procedure Open the rear compartment lid to access the retainers. Use a trim removal tool to aid in the removal of the retainers.
2	Rear Compartment Floor Panel Trim

Callout

Component Name

Preliminary Procedure
Remove the rear compartment floor panel carpet. Refer to Rear Compartment Floor Panel Carpet Replacement .

Rear Compartment Floor Panel Trim Retainer (Qty: 3)

Procedure

Rear Compartment Floor Panel Trim
