Instrument Panel Knee Bolster Replacement

Preliminary Procedure

1. Disable the SIR system. Refer to SIR Disabling and Enabling .
2. Remove the driver side inflatable restraint instrument panel lower module. Refer to Instrument Panel Lower Airbag Replacement - Driver Side .
3. Remove the left instrument panel outer trim cover. Refer to Instrument Panel Outer Trim Cover Replacement .
4. Remove the left instrument panel lower trim panel insulator. Refer to Instrument Panel Lower Trim Panel Insulator Replacement - Left Side .
5. Remove the left front floor console side trim panel. Refer to Front Floor Console Side Trim Panel Replacement - Left Side
6. Remove the instrument panel center trim plate applique. Refer to Instrument Panel Center Trim Plate Applique Replacement .

Procedures

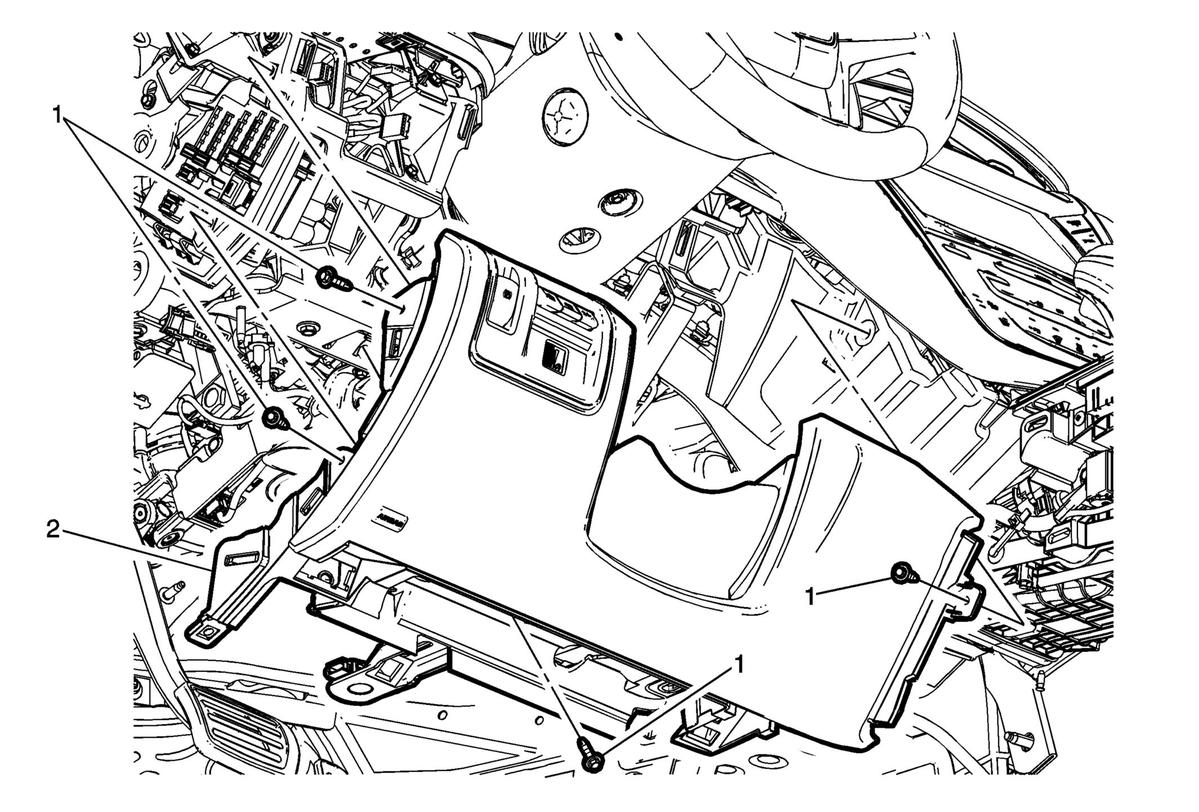

1. Use a flat bladed plastic trim tool in order to release the retainer clips securing the knee bolster to the instrument carrier.
2. Disconnect electrical connections.
3. Transfer all necessary components.
