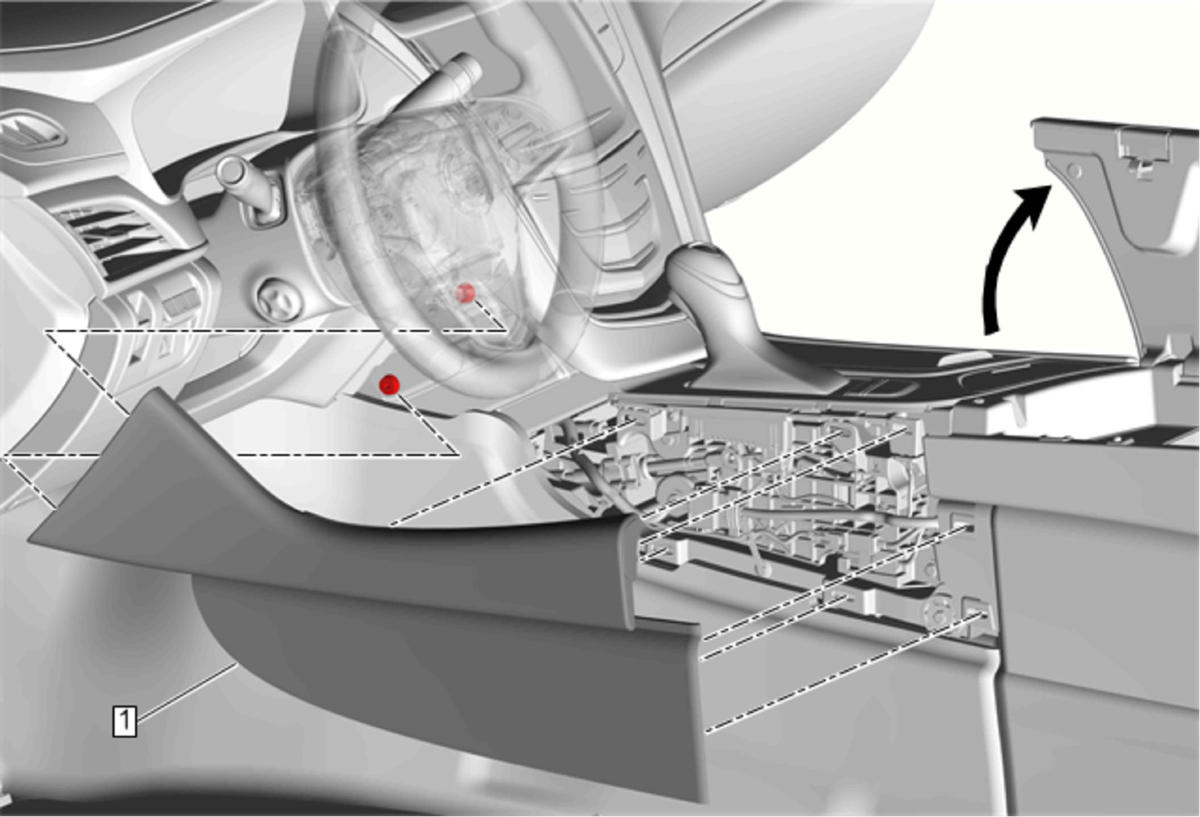

Front Floor Console Side Trim Panel Replacement - Left Side

Procedure

1. Position the driver seat rearward.
2. Starting from the rear, use a flat bladed plastic trim tool to aid in the removal of the panel from the front floor console assembly.
3. Pull the panel rearward to release the integral hook from the carrier assembly.
4. When installing the panel, secure the integral hook to the carrier first then secure the retainers.
