Instrument Panel Lower Airbag Replacement - Driver Side

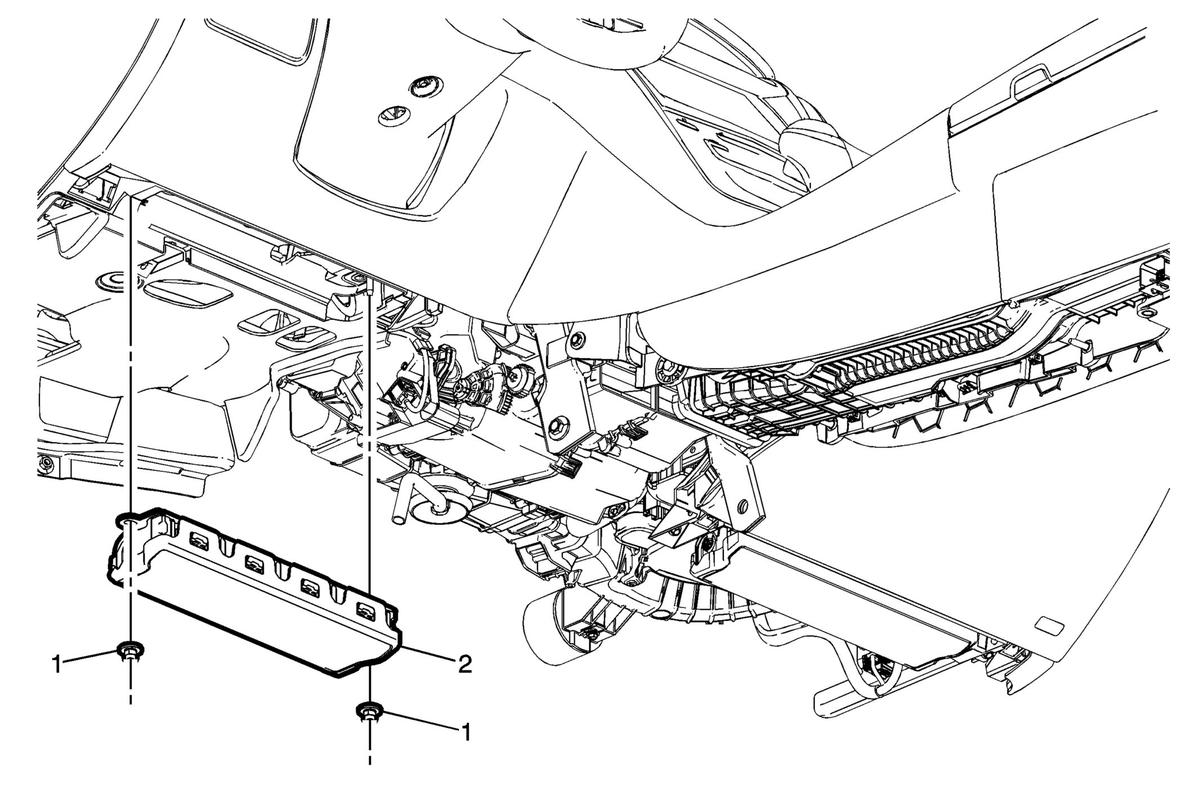

GM3457818
Callout Component Name
WARNING:

Refer to SIR Inflator Module Handling and Storage Warning .

WARNING:

Refer to SIR Warning .

Preliminary Procedure Disable the SIR system. Refer to SIR Disabling and Enabling .
1 Instrument Panel Lower Airbag Nut (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Tighten
8 N.m (71 lb in)
2 Instrument Panel Lower Airbag Assembly - Driver Side

Procedure

  1. Disconnect the airbag electrical connector.
  2. Refer to Inflatable Restraint Module Handling and Scrapping .
  3. Enable the SIR system. Refer to SIR Disabling and Enabling .
