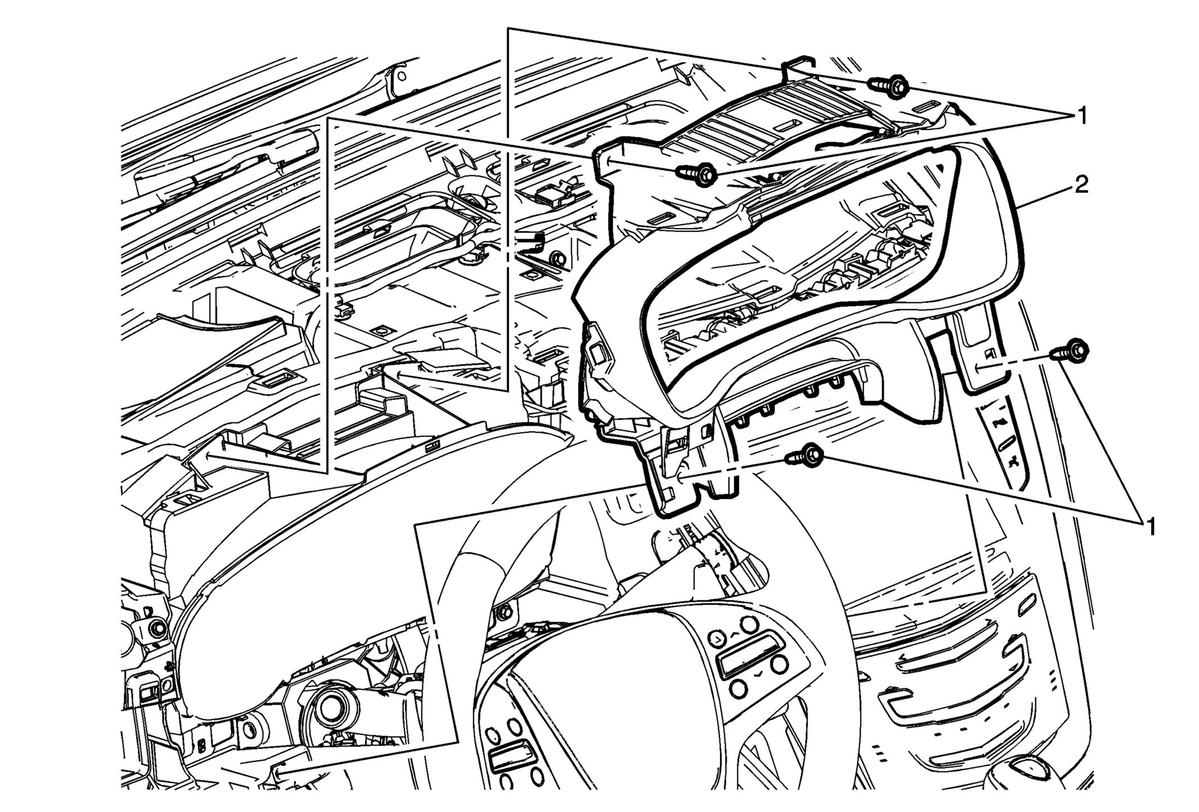

Instrument Panel Cluster Trim Plate Applique Replacement

GM3453479

Callout

Component Name

Preliminary Procedures

Remove the instrument panel center trim pad. Refer to Instrument Panel Center Trim Pad Replacement .
Remove the left instrument panel lower center trim panel. Refer to Instrument Panel Lower Center Trim Panel Replacement (Right Side) Instrument Panel Lower Center Trim Panel Replacement (Left Side) .
Remove the left instrument panel trim plate applique. Refer to Instrument Panel Trim Plate Applique Replacement - Left Side .
Remove the steering column upper trim cover. Refer to Steering Column Upper Trim Cover Replacement .

1

Instrument Panel Outer Bolt (Qty: 4)

CAUTION:

Refer to Fastener Caution .

Tighten:
2.5 N.m (22 lb in)

2

Instrument Panel Cluster Trim Plate Applique
