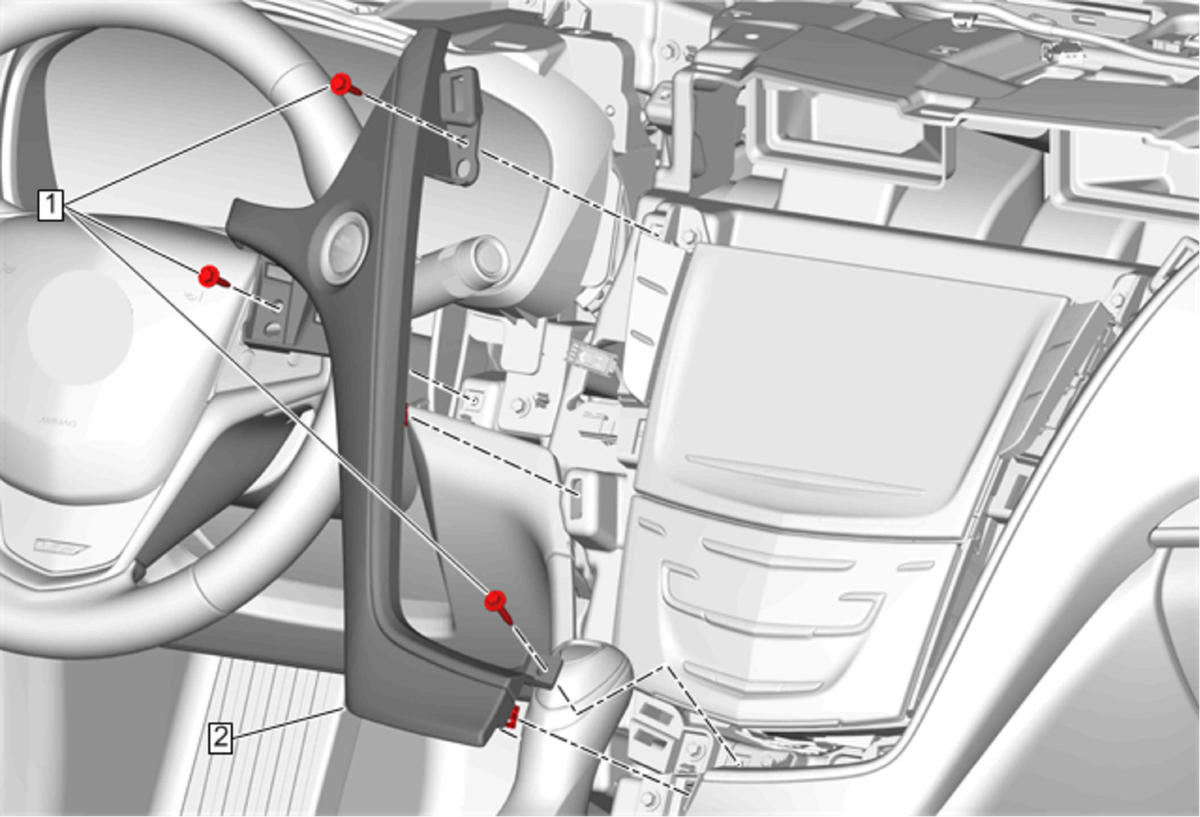

Instrument Panel Lower Center Trim Panel Replacement (Left Side)

Callout	Component Name
Preliminary Procedure Instrument Panel Center Trim Plate Applique Replacement Instrument Panel Accessory Center Trim Plate Replacement
1	Instrument Panel Lower Trim Panel Bolt [3x] CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Instrument Panel Lower Center Trim Panel Procedure Use a flat bladed plastic trim tool. Disconnect the electrical connector.

Callout

Component Name

Preliminary Procedure

Instrument Panel Lower Trim Panel Bolt [3x]

CAUTION:

Tighten
2.5 N.m (22 lb in)

Instrument Panel Lower Center Trim Panel

Procedure
