Instrument Panel Trim Plate Applique Replacement - Left Side

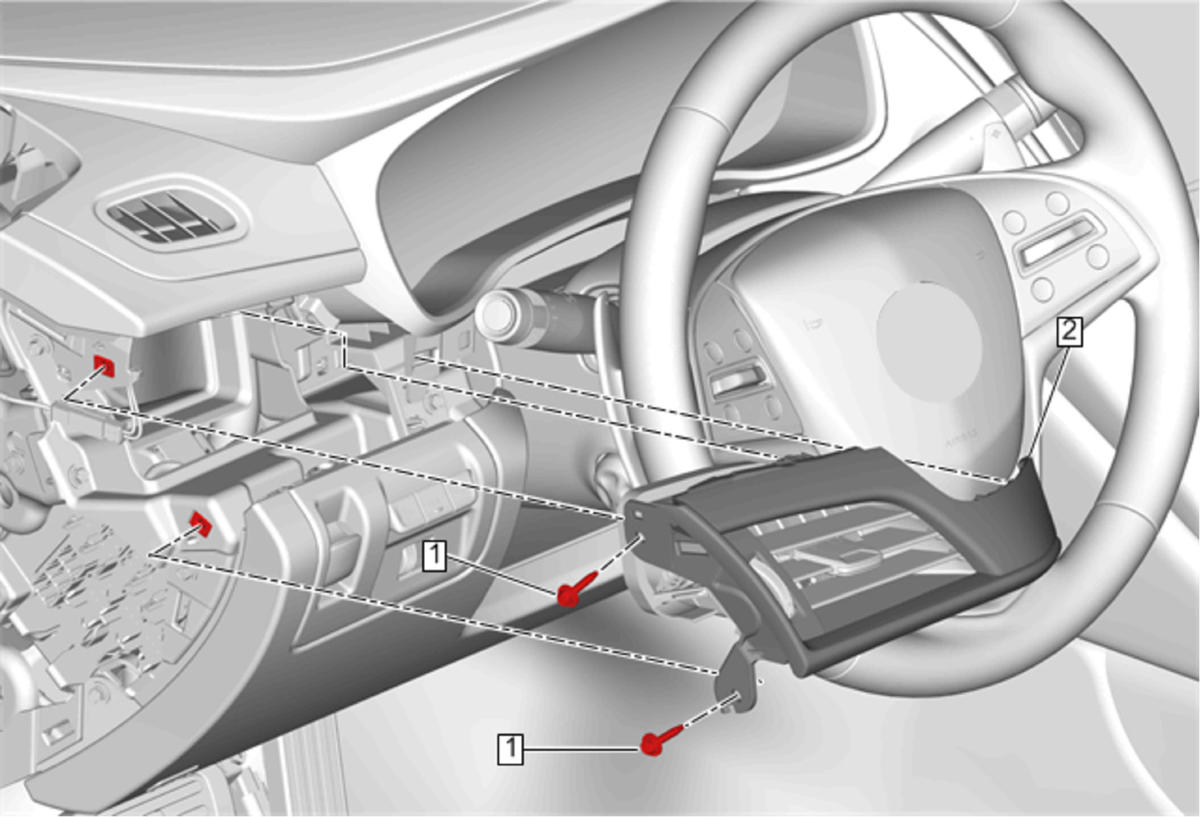

| Callout | Component Name |
|---|---|
| Preliminary Procedure Instrument Panel Outer Trim Cover Replacement |
|
| 1 | Instrument Panel Molding Bolt [2x]
CAUTION:
Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in) |
| 2 | Instrument Panel Trim Plate Applique - Left Side Procedure
|
