Rear Bumper Fascia Replacement

Preliminary Procedures

1. It is only necessary to reposition the rear wheelhouse liner enough to gain access to the rear bumper fascia bolts Rear Wheelhouse Liner Replacement
2. Underbody Rear Air Rear Deflector Replacement (Without HP9)Underbody Rear Air Rear Deflector Replacement (With HP9)
3. {If equipped} Underbody Rear Air Outer Deflector Replacement (without HP9)Underbody Rear Air Outer Deflector Replacement (with HP9)

Procedure

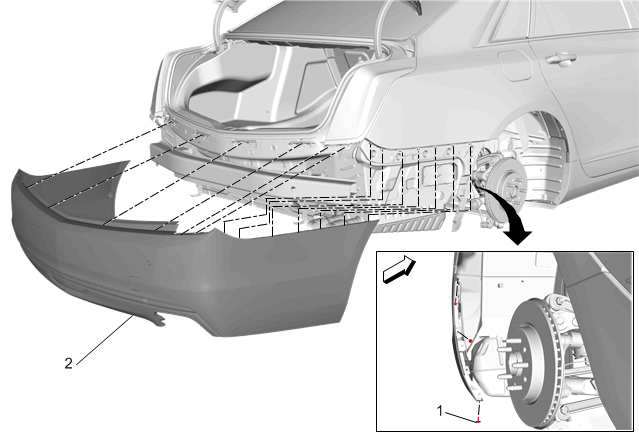

1. Carefully push a small nylon wedge between the fascia and the rear fascia guide. Insert a small flat-bladed tool into the fascia slot and depress the snaps one at a time and pull on the fascia at the same time to gradually remove the fascia from the rear fascia guide.
2. Disconnect all electrical connectors.
3. Transfer components as necessary.
