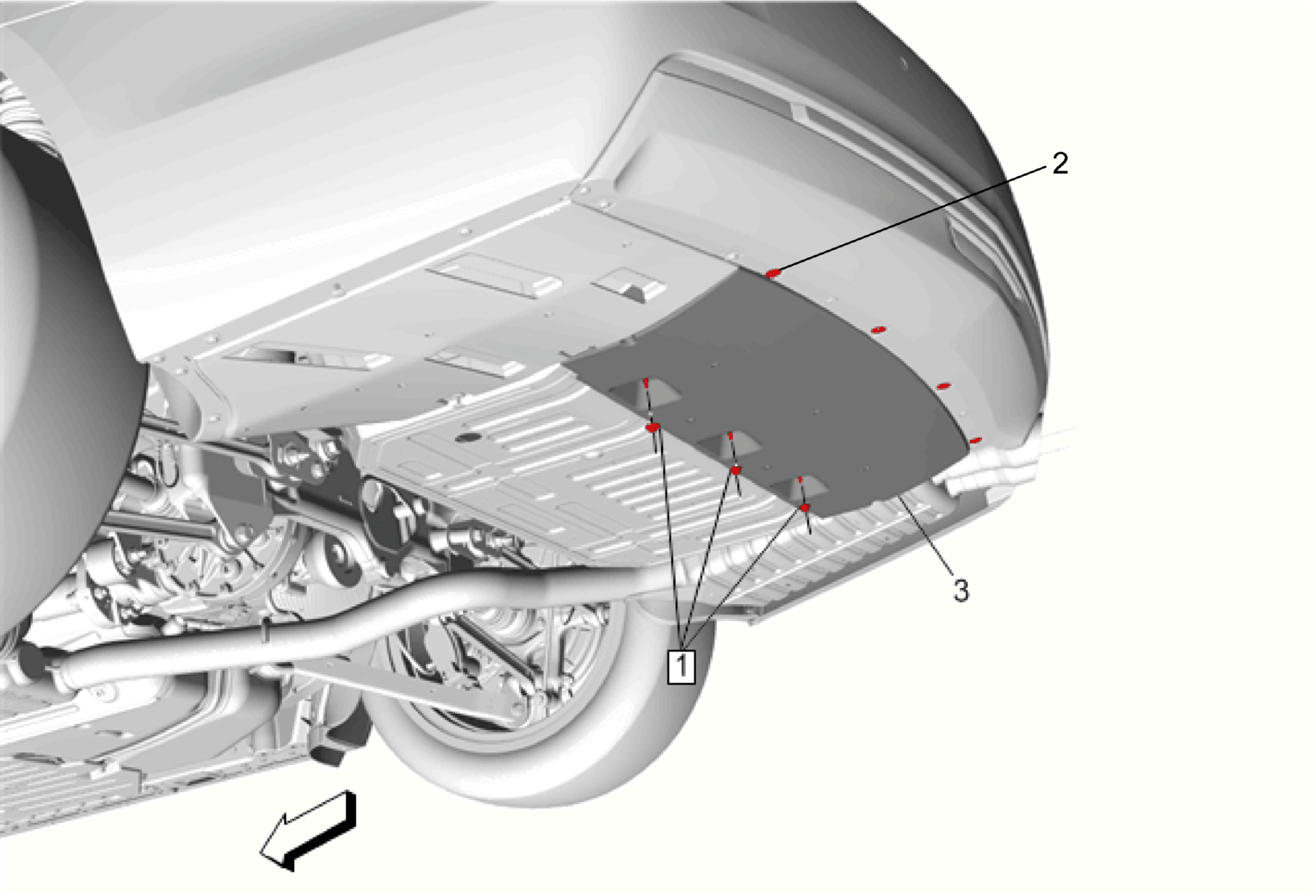

Underbody Rear Air Rear Deflector Replacement (Without HP9)
| Callout | Component Name |
|---|---|
| Preliminary Procedure Raise and support the vehicle. Lifting and Jacking the Vehicle |
|
| 1 | Underbody Rear Air Rear Deflector Nut [3x]
CAUTION:
Refer to Fastener Caution Tighten 6 N.m (53 lb in) |
| 2 | Underbody Rear Air Rear Deflector Fastener [4x] Tighten 2.5 N.m (22 lb in) |
| 3 | Underbody Rear Air Rear Deflector |
